Description
Brand - FAG
Item Number - 61812-2RZ-Y FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 60
Outer Diameter (D) mm - 78
Width (B) mm - 10
Basic Dynamic Load Rating (Cr) N - 12600
Basic Static Load Rating (C0r) N - 11100
Fatigue Limit Load (Cur) N - 710
Limiting Speed (nG) min–1 - 10400
Speed Rating (nϑr) min–1 - 6300
Calculation Factor (f0) - 16.3
Weight (m) kg - 0.1
Minimum Chamfer Dimension (r min) mm - 0.3
Caliber Diameter Outer Ring (D2) mm - 74.58
Shoulder Diameter Inner Ring (d1) mm - 65.6

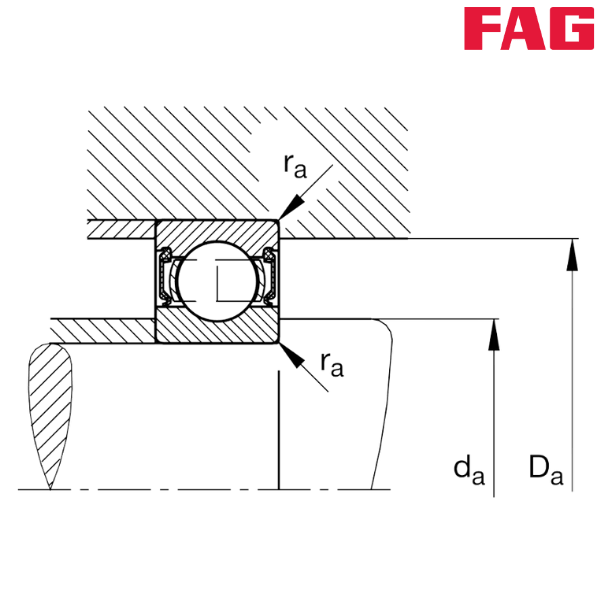

Minimum Diameter Shaft Shoulder (da) mm - 62
Maximum Diameter of Housing Shoulder (Da) mm - 76
Maximum Fillet Radius (ra) mm - 0.3
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
Y - Sheet Brass Cage
2RZ - Non-Contact Seal on Both Sides (Rubberised Gap Seal)
** Images are for representation purposes only
