Description
Brand - FAG
Item Number - 61822-2RZ-Y FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 110
Outer Diameter (D) mm - 140
Width (B) mm - 16
Basic Dynamic Load Rating (Cr) N - 30000
Basic Static Load Rating (C0r) N - 30500
Fatigue Limit Load (Cur) N - 1650
Limiting Speed (nG) min–1 - 5600
Speed Rating (nϑr) min–1 - 4100
Calculation Factor (f0) - 16
Weight (m) kg - 0.54
Minimum Chamfer Dimension (r min) mm - 1
Caliber Diameter Outer Ring (D2) mm - 133.3
Shoulder Diameter Inner Ring (d1) mm - 119.7

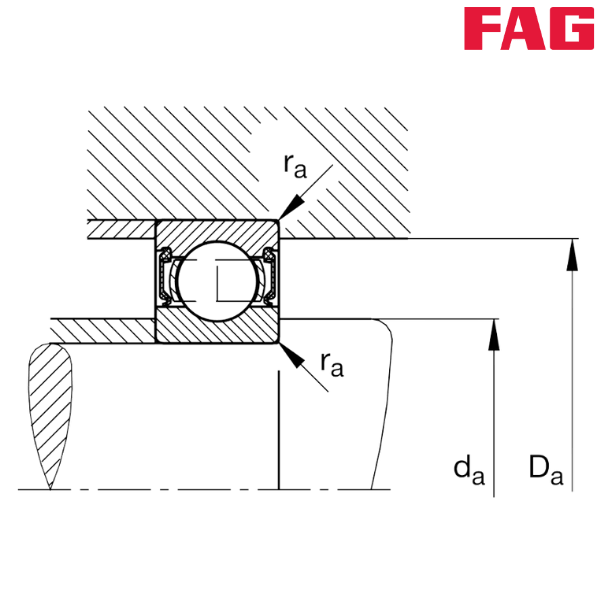

Minimum Diameter Shaft Shoulder (da) mm - 114.6
Maximum Diameter of Housing Shoulder (Da) mm - 135.4
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
Y - Sheet Brass Cage
2RZ - Non-Contact Seal on Both Sides (Rubberised Gap Seal)
** Images are for representation purposes only
