Description
Brand - FAG
Item Number - 61904-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 20
Outer Diameter (D) mm - 37
Width (B) mm - 9
Basic Dynamic Load Rating (Cr) N - 6380
Basic Static Load Rating (C0r) N - 3680
Fatigue Limit Load (Cur) N - 233
Limiting Speed (nG) min–1 - 24200
Speed Rating (nϑr) min–1 - 17000
Calculation Factor (f0) - 14.8
Weight (m) kg - 0.037
Minimum Chamfer Dimension (r min) mm - 0.3
Caliber Diameter Outer Ring (D2) mm - 33.5
Caliber Diameter Inner Ring (d2) mm - 23.7

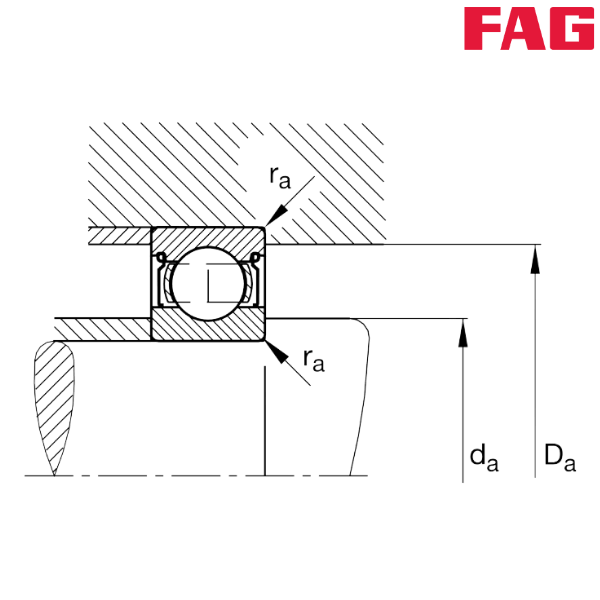

Minimum Diameter Shaft Shoulder (da) mm - 22
Maximum Diameter of Housing Shoulder (Da) mm - 35
Maximum Fillet Radius (ra) mm - 0.3
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
