Description
Brand - FAG
Item Number - 61908 FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 40
Outer Diameter (D) mm - 62
Width (B) mm - 12
Basic Dynamic Load Rating (Cr) N - 14500
Basic Static Load Rating (C0r) N - 9900
Fatigue Limit Load (Cur) N - 590
Limiting Speed (nG) min–1 - 15800
Speed Rating (nϑr) min–1 - 10000
Calculation Factor (f0) - 15.5
Weight (m) kg - 0.115
Minimum Chamfer Dimension (r min) mm - 0.6
Shoulder Diameter Outer Ring (D1) mm - 55.1
Shoulder Diameter Inner Ring (d1) mm - 46.9
Minimum Diameter Shaft Shoulder (da) mm - 43.2
Maximum Diameter of Housing Shoulder (Da) mm - 58.8
Maximum Fillet Radius (ra) mm - 0.6

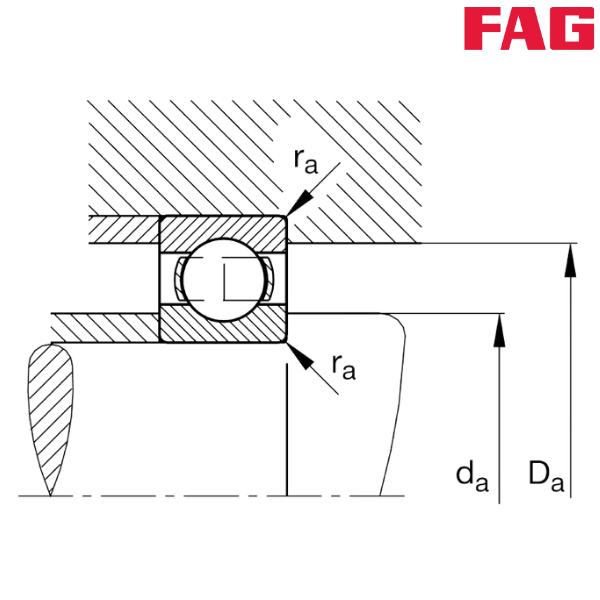

** Images are for representation purposes only
