Description
Brand - FAG
Item Number - 61911-2RZ FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 55
Outer Diameter (D) mm - 80
Width (B) mm - 13
Basic Dynamic Load Rating (Cr) N - 17700
Basic Static Load Rating (C0r) N - 14100
Fatigue Limit Load (Cur) N - 780
Limiting Speed (nG) min–1 - 10300
Speed Rating (nϑr) min–1 - 7500
Calculation Factor (f0) - 16.3
Weight (m) kg - 0.18
Minimum Chamfer Dimension (r min) mm - 1

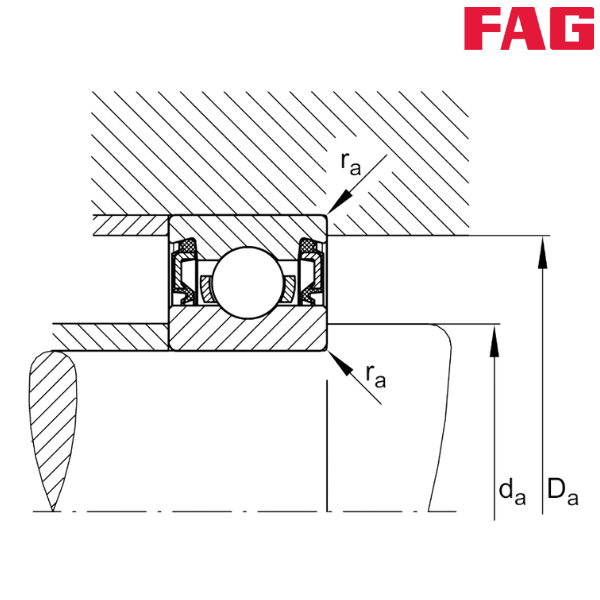

Caliber Diameter Outer Ring (D2) mm - 74.2
Shoulder Diameter Inner Ring (d1) mm - 63.2
Minimum Diameter Shaft Shoulder (da) mm - 59.6
Maximum Diameter of Housing Shoulder (Da) mm - 75.4
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RZ - Non-Contact Seal on Both Sides (Rubberised Gap Seal)
** Images are for representation purposes only
