Description
Brand - FAG
Item Number - 61913 FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 65
Outer Diameter (D) mm - 90
Width (B) mm - 13
Basic Dynamic Load Rating (Cr) N - 18500
Basic Static Load Rating (C0r) N - 16100
Fatigue Limit Load (Cur) N - 890
Limiting Speed (nG) min–1 - 10600
Speed Rating (nϑr) min–1 - 6400
Calculation Factor (f0) - 16.6
Weight (m) kg - 0.212
Minimum Chamfer Dimension (r min) mm - 1
Shoulder Diameter Outer Ring (D1) mm - 81.8
Shoulder Diameter Inner Ring (d1) mm - 73.2

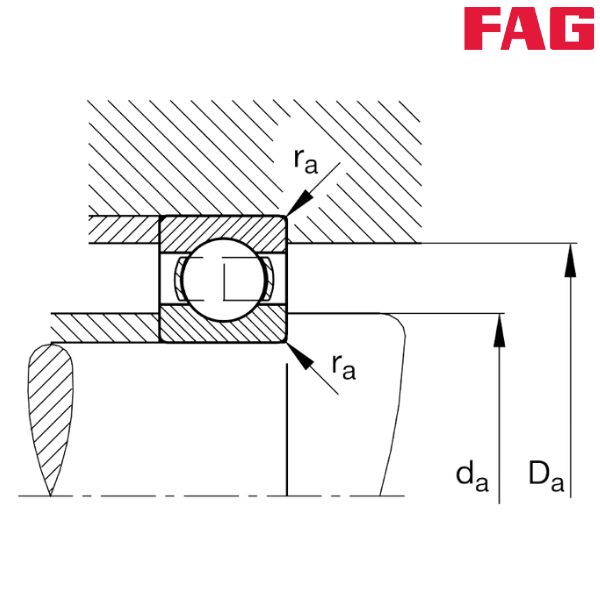

Minimum Diameter Shaft Shoulder (da) mm - 69.6
Maximum Diameter of Housing Shoulder (Da) mm - 85.4
Maximum Fillet Radius (ra) mm - 1
