Description
Brand - FAG
Item Number - 6201-C-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 12
Outer Diameter (D) mm - 32
Width (B) mm - 10
Basic Dynamic Load Rating (Cr) N - 8000
Basic Static Load Rating (C0r) N - 3100
Fatigue Limit Load (Cur) N - 213
Limiting Speed (nG) min–1 - 31500
Speed Rating (nϑr) min–1 - 24600
Calculation Factor (f0) - 12.3
Weight (m) kg - 0.036
Minimum Chamfer Dimension (r min) mm - 0.6
Caliber Diameter Outer Ring (D2) mm - 27.92
Caliber Diameter Inner Ring (d2) mm - 17.34

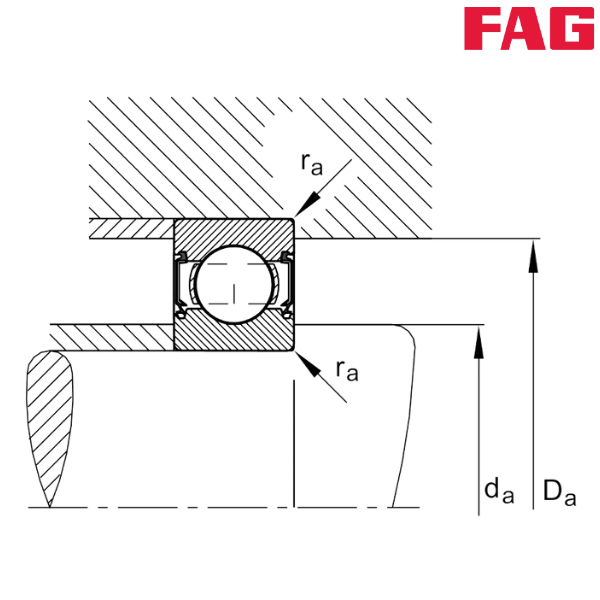

Minimum Diameter Shaft Shoulder (da) mm - 16.2
Maximum Diameter of Housing Shoulder (Da) mm - 27.8
Maximum Fillet Radius (ra) mm - 0.6
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
