Description
Brand - FAG
Item Number - 6202-C-2HRS FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 15
Outer Diameter (D) mm - 35
Width (B) mm - 11
Basic Dynamic Load Rating (Cr) N - 8900
Basic Static Load Rating (C0r) N - 3750
Fatigue Limit Load (Cur) N - 260
Limiting Speed (nG) min–1 - 19400
Calculation Factor (f0) - 13
Weight (m) kg - 0.044
Minimum Chamfer Dimension (r min) mm - 0.6
Caliber Diameter Outer Ring (D2) mm - 30.92
Caliber Diameter Inner Ring (d2) mm - 20.08

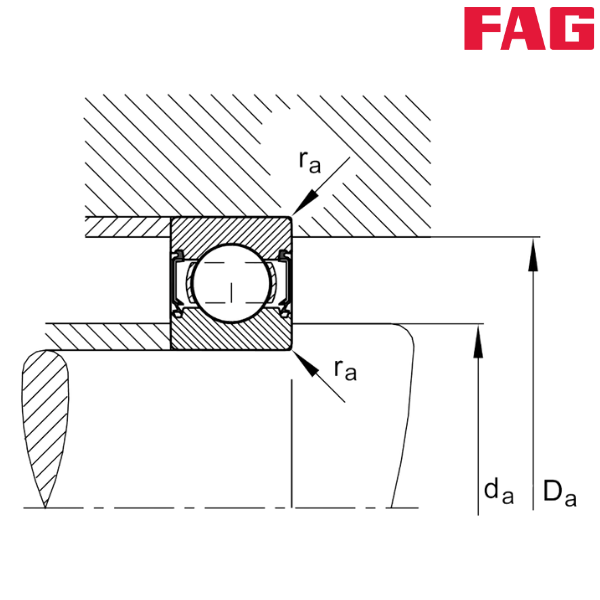

Minimum Diameter Shaft Shoulder (da) mm - 19.2
Maximum Diameter of Housing Shoulder (Da) mm - 30.8
Maximum Fillet Radius (ra) mm - 0.6
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
2HRS - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
