Description
Brand - FAG
Item Number - 6204-C FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 20
Outer Diameter (D) mm - 47
Width (B) mm - 14
Basic Dynamic Load Rating (Cr) N - 14700
Basic Static Load Rating (C0r) N - 6600
Fatigue Limit Load (Cur) N - 455
Limiting Speed (nG) min–1 - 24300
Speed Rating (nϑr) min–1 - 18100
Calculation Factor (f0) - 13.1
Weight (m) kg - 0.1
Minimum Chamfer Dimension (r min) mm - 1
Caliber Diameter Outer Ring (D2) mm - 41
Caliber Diameter Inner Ring (d2) mm - 26.77

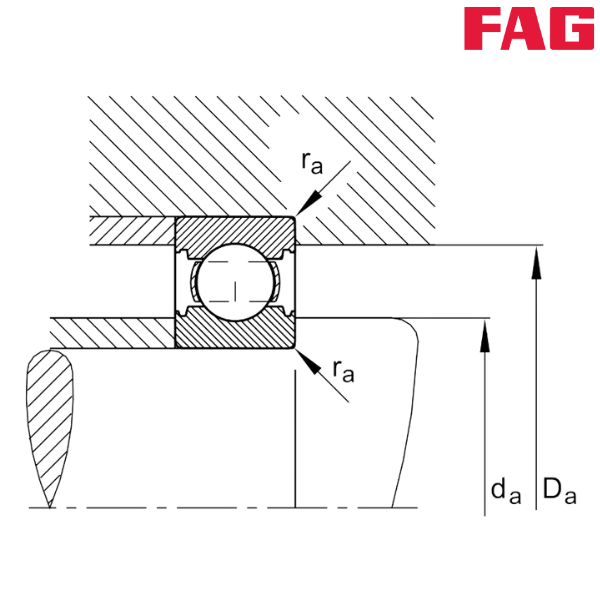

Minimum Diameter Shaft Shoulder (da) mm - 25.6
Maximum Diameter of Housing Shoulder (Da) mm - 41.4
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
** Images are for representation purposes only
