Description
Brand - FAG
Item Number - 6208-C-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 40
Outer Diameter (D) mm - 80
Width (B) mm - 18
Basic Dynamic Load Rating (Cr) N - 31500
Basic Static Load Rating (C0r) N - 17800
Fatigue Limit Load (Cur) N - 1230
Limiting Speed (nG) min–1 - 11600
Speed Rating (nϑr) min–1 - 10500
Calculation Factor (f0) - 14
Weight (m) kg - 0.362
Minimum Chamfer Dimension (r min) mm - 1.1
Caliber Diameter Outer Ring (D2) mm - 70.57
Caliber Diameter Inner Ring (d2) mm - 49.3

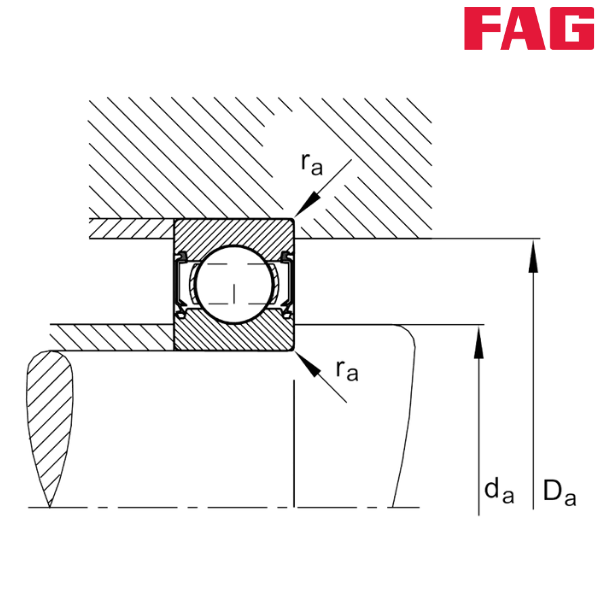

Minimum Diameter Shaft Shoulder (da) mm - 47
Maximum Diameter of Housing Shoulder (Da) mm - 73
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
