Description
Brand - FAG
Item Number - 62211-2RSR FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 55
Outer Diameter (D) mm - 100
Width (B) mm - 25
Basic Dynamic Load Rating (Cr) N - 44500
Basic Static Load Rating (C0r) N - 29000
Fatigue Limit Load (Cur) N - 1770
Limiting Speed (nG) min–1 - 3900
Calculation Factor (f0) - 14.2
Weight (m) kg - 0.737
Minimum Chamfer Dimension (r min) mm - 1.5
Caliber Diameter Outer Ring (D2) mm - 88.2
Shoulder Diameter Inner Ring (d1) mm - 68.65
Minimum Diameter Shaft Shoulder (da) mm - 64
Maximum Diameter of Housing Shoulder (Da) mm - 91
Maximum Fillet Radius (ra) mm - 1.5
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RSR - Contact Seal on Both Sides (Lip Seal)

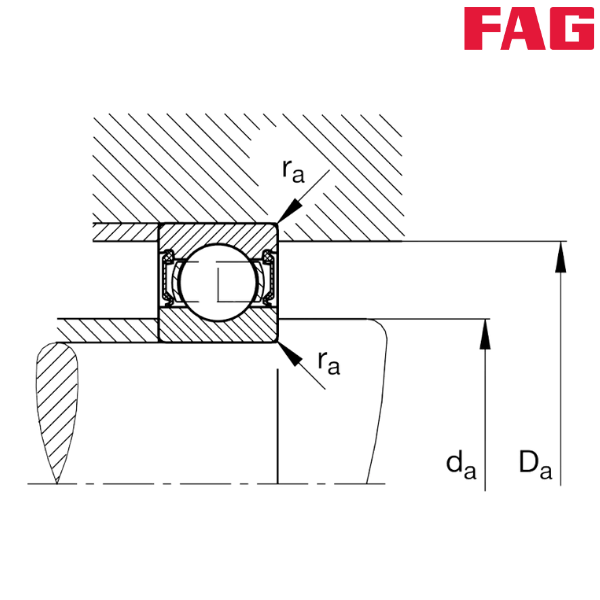

** Images are for representation purposes only
