Description
Brand - FAG
Item Number - 6222-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 110
Outer Diameter (D) mm - 200
Width (B) mm - 38
Basic Dynamic Load Rating (Cr) N - 153000
Basic Static Load Rating (C0r) N - 117000
Fatigue Limit Load (Cur) N - 6500
Limiting Speed (nG) min–1 - 3800
Speed Rating (nϑr) min–1 - 4500
Calculation Factor (f0) - 14.3
Weight (m) kg - 4.58
Minimum Chamfer Dimension (r min) mm - 2.1
Caliber Diameter Outer Ring (D2) mm - 177.2
Shoulder Diameter Inner Ring (d1) mm - 138

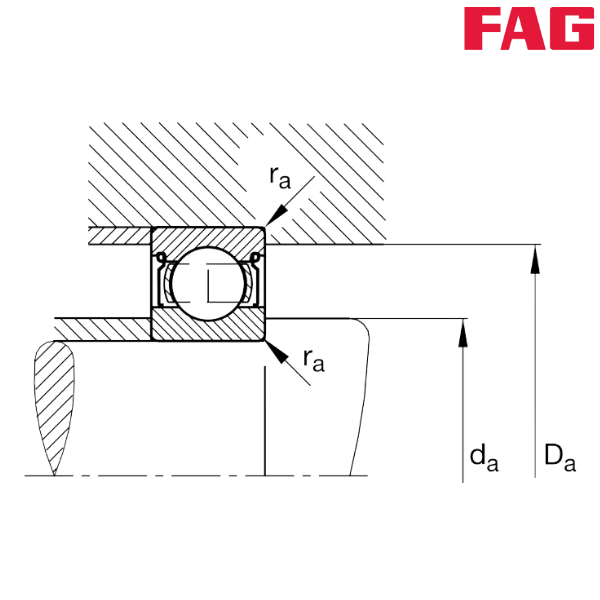

Minimum Diameter Shaft Shoulder (da) mm - 122
Maximum Diameter of Housing Shoulder (Da) mm - 188
Maximum Fillet Radius (ra) mm - 2.1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
