Description
Brand - FAG
Item Number - 6301-C-2HRS FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 12
Outer Diameter (D) mm - 37
Width (B) mm - 12
Basic Dynamic Load Rating (Cr) N - 11500
Basic Static Load Rating (C0r) N - 4200
Fatigue Limit Load (Cur) N - 290
Limiting Speed (nG) min–1 - 21700
Calculation Factor (f0) - 11.1
Weight (m) kg - 0.059
Minimum Chamfer Dimension (r min) mm - 1
Caliber Diameter Outer Ring (D2) mm - 32
Caliber Diameter Inner Ring (d2) mm - 17.97

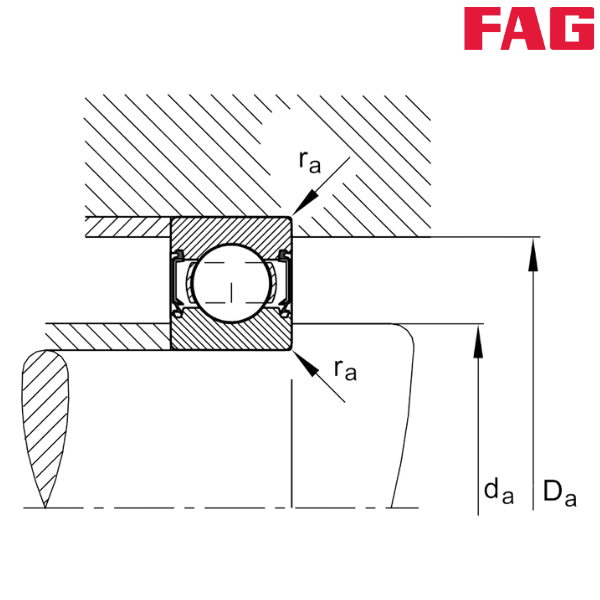

Minimum Diameter Shaft Shoulder (da) mm - 17.6
Maximum Diameter of Housing Shoulder (Da) mm - 31.4
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
2HRS - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
