Description
Brand - FAG
Item Number - 6303-C-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 17
Outer Diameter (D) mm - 47
Width (B) mm - 14
Basic Dynamic Load Rating (Cr) N - 15800
Basic Static Load Rating (C0r) N - 6500
Fatigue Limit Load (Cur) N - 450
Limiting Speed (nG) min–1 - 20800
Speed Rating (nϑr) min–1 - 17400
Calculation Factor (f0) - 12.2
Weight (m) kg - 0.117
Minimum Chamfer Dimension (r min) mm - 1
Caliber Diameter Outer Ring (D2) mm - 40.07
Caliber Diameter Inner Ring (d2) mm - 24.77

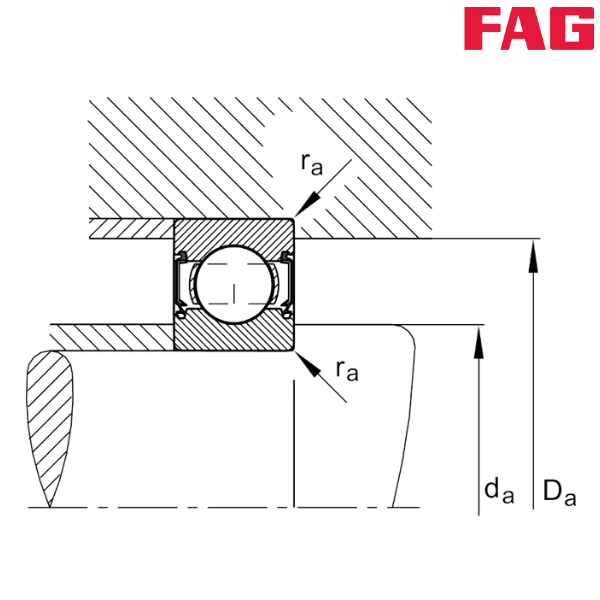

Minimum Diameter Shaft Shoulder (da) mm - 22.6
Maximum Diameter of Housing Shoulder (Da) mm - 41.4
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
