Description
Brand - FAG
Item Number - 6307-C-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 35
Outer Diameter (D) mm - 80
Width (B) mm - 21
Basic Dynamic Load Rating (Cr) N - 37000
Basic Static Load Rating (C0r) N - 19100
Fatigue Limit Load (Cur) N - 1330
Limiting Speed (nG) min–1 - 11500
Speed Rating (nϑr) min–1 - 10900
Calculation Factor (f0) - 13.1
Weight (m) kg - 0.488
Minimum Chamfer Dimension (r min) mm - 1.5
Caliber Diameter Outer Ring (D2) mm - 69.69
Caliber Diameter Inner Ring (d2) mm - 46.18

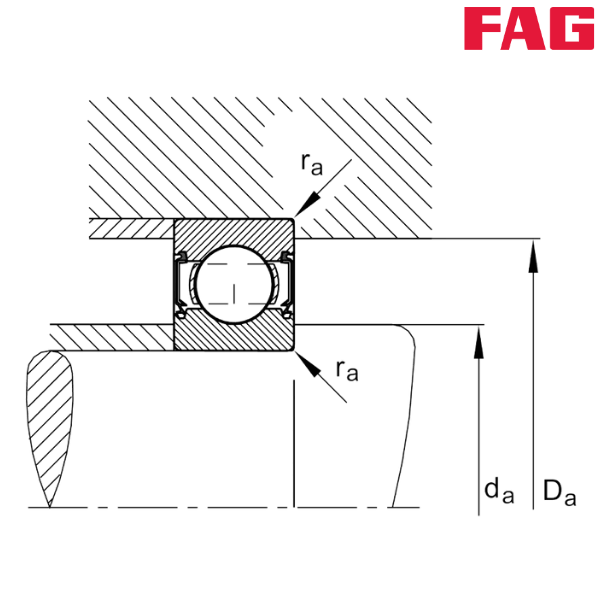

Minimum Diameter Shaft Shoulder (da) mm - 44
Maximum Diameter of Housing Shoulder (Da) mm - 71
Maximum Fillet Radius (ra) mm - 1.5
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
