Description
Brand - FAG
Item Number - 6308-C FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 40
Outer Diameter (D) mm - 90
Width (B) mm - 23
Basic Dynamic Load Rating (Cr) N - 47000
Basic Static Load Rating (C0r) N - 25000
Fatigue Limit Load (Cur) N - 1740
Limiting Speed (nG) min–1 - 11800
Speed Rating (nϑr) min–1 - 9900
Calculation Factor (f0) - 13
Weight (m) kg - 0.596
Minimum Chamfer Dimension (r min) mm - 1.5
Caliber Diameter Outer Ring (D2) mm - 78.61
Caliber Diameter Inner Ring (d2) mm - 52.28

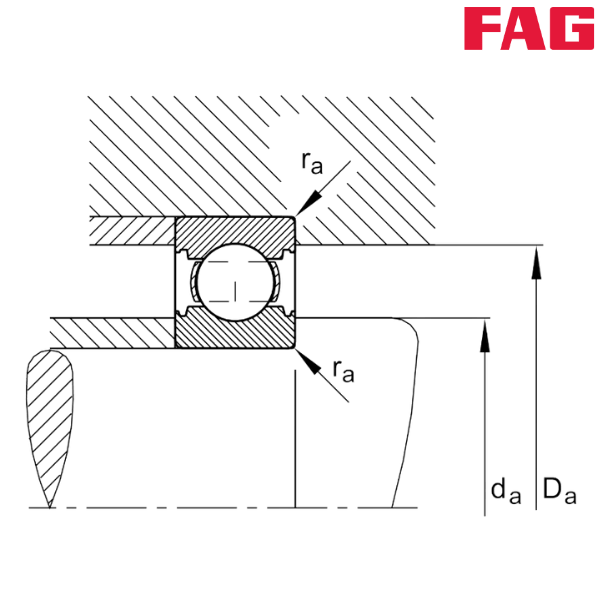

Minimum Diameter Shaft Shoulder (da) mm - 49
Maximum Diameter of Housing Shoulder (Da) mm - 81
Maximum Fillet Radius (ra) mm - 1.5
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
** Images are for representation purposes only
