Description
Brand - FAG
Item Number - 6310-C-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 50
Outer Diameter (D) mm - 110
Width (B) mm - 27
Basic Dynamic Load Rating (Cr) N - 68000
Basic Static Load Rating (C0r) N - 38000
Fatigue Limit Load (Cur) N - 2650
Limiting Speed (nG) min–1 - 8000
Speed Rating (nϑr) min–1 - 8400
Calculation Factor (f0) - 13.1
Weight (m) kg - 1.1
Minimum Chamfer Dimension (r min) mm - 2
Caliber Diameter Outer Ring (D2) mm - 95.22
Caliber Diameter Inner Ring (d2) mm - 66.74

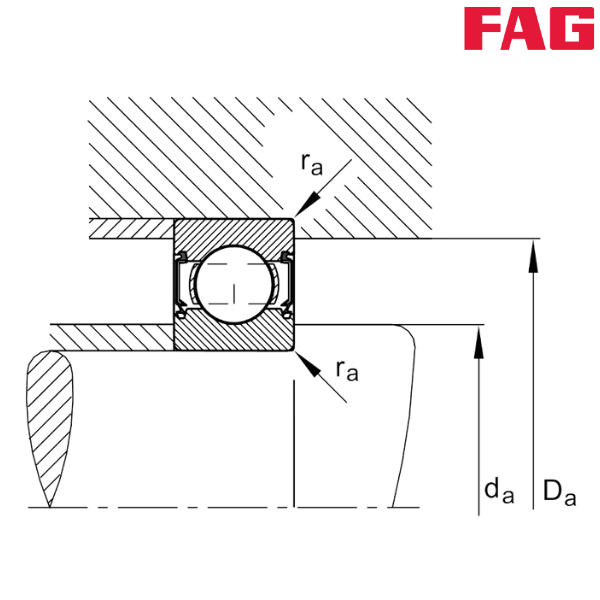

Minimum Diameter Shaft Shoulder (da) mm - 61
Maximum Diameter of Housing Shoulder (Da) mm - 99
Maximum Fillet Radius (ra) mm - 2
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
