Description
Brand - FAG
Item Number - 6311-C-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 55
Outer Diameter (D) mm - 120
Width (B) mm - 29
Basic Dynamic Load Rating (Cr) N - 83000
Basic Static Load Rating (C0r) N - 47500
Fatigue Limit Load (Cur) N - 3300
Limiting Speed (nG) min–1 - 7200
Speed Rating (nϑr) min–1 - 7800
Calculation Factor (f0) - 12.9
Weight (m) kg - 1.37
Minimum Chamfer Dimension (r min) mm - 2
Caliber Diameter Outer Ring (D2) mm - 105.3
Caliber Diameter Inner Ring (d2) mm - 72.54

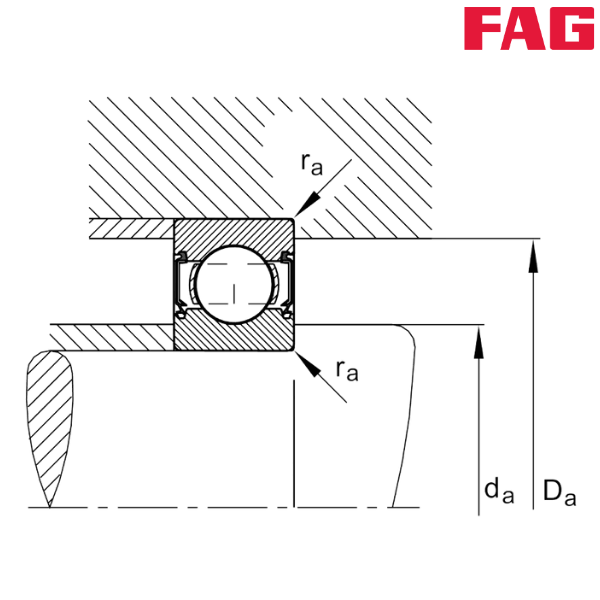

Minimum Diameter Shaft Shoulder (da) mm - 66
Maximum Diameter of Housing Shoulder (Da) mm - 109
Maximum Fillet Radius (ra) mm - 2
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
