Description
Brand - FAG
Item Number - 6312-C FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 60
Outer Diameter (D) mm - 130
Width (B) mm - 31
Basic Dynamic Load Rating (Cr) N - 89000
Basic Static Load Rating (C0r) N - 52000
Fatigue Limit Load (Cur) N - 3600
Limiting Speed (nG) min–1 - 7900
Speed Rating (nϑr) min–1 - 7400
Calculation Factor (f0) - 13.2
Weight (m) kg - 1.74
Minimum Chamfer Dimension (r min) mm - 2.1
Caliber Diameter Outer Ring (D2) mm - 112.14
Caliber Diameter Inner Ring (d2) mm - 79.58

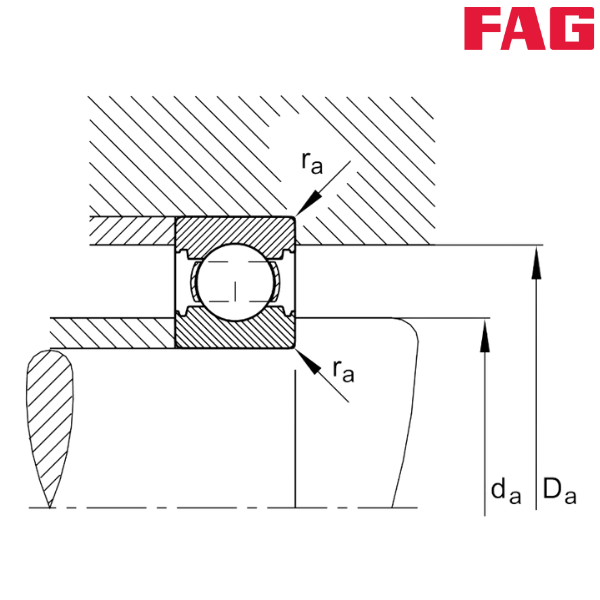

Minimum Diameter Shaft Shoulder (da) mm - 72
Maximum Diameter of Housing Shoulder (Da) mm - 118
Maximum Fillet Radius (ra) mm - 2.1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
** Images are for representation purposes only
