Description
Brand - FAG
Item Number - 6315-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 75
Outer Diameter (D) mm - 160
Width (B) mm - 37
Basic Dynamic Load Rating (Cr) N - 123000
Basic Static Load Rating (C0r) N - 77000
Fatigue Limit Load (Cur) N - 4850
Limiting Speed (nG) min–1 - 5400
Speed Rating (nϑr) min–1 - 5800
Calculation Factor (f0) - 13.2
Weight (m) kg - 3.23
Minimum Chamfer Dimension (r min) mm - 2.1
Caliber Diameter Outer Ring (D2) mm - 137.22
Shoulder Diameter Inner Ring (d1) mm - 101.4

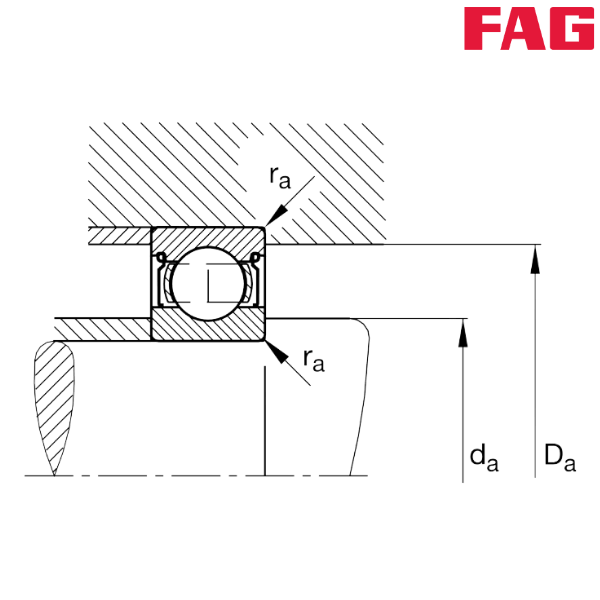

Minimum Diameter Shaft Shoulder (da) mm - 87
Maximum Diameter of Housing Shoulder (Da) mm - 148
Maximum Fillet Radius (ra) mm - 2.1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
