Description
Brand - McMASTER-CARR
Item Number - 6321K22 McMASTER-CARR

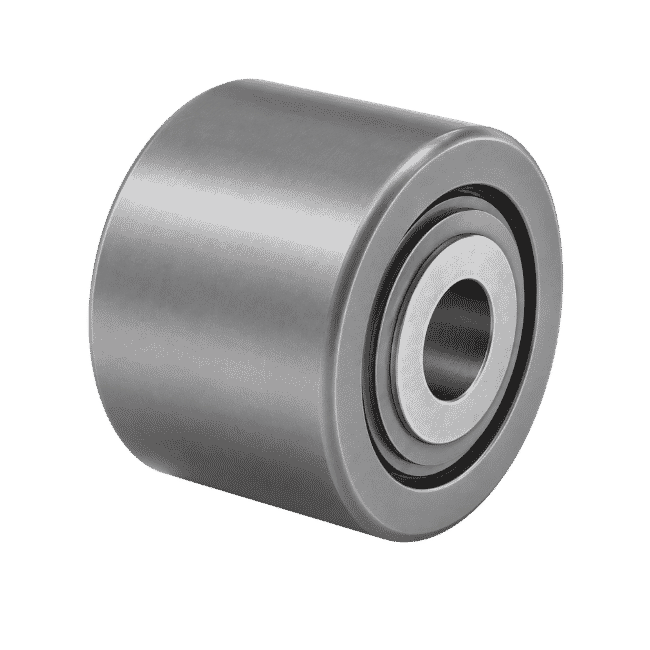

Category - Thrust-Load-Rated Shaft-Mount Track Rollers (Steel Flat Rollers with Seal)
Imperial :

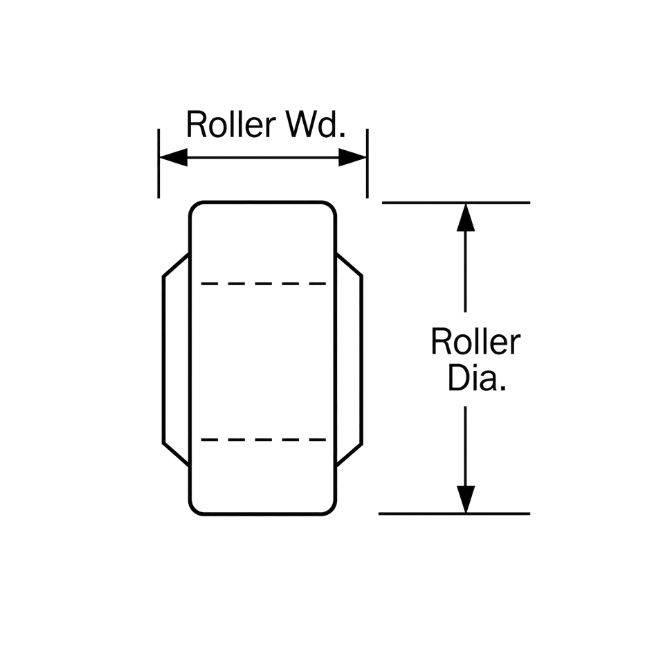

Roller Diameter (inch) - 2.5
Roller Width (inch) - 1.5
For Shaft Diameter (inch) - 0.75
Overall Width (inch) - 1.5625
Maximum Speed (rpm) - 1100
Radial Static Load Capacity (lbs) - 7600
Radial Dynamic Load Capacity (lbs) - 4500
Static Thrust Load Capacity (lbs) - 4500
Maximum Temperature (°F) - 225°
Inside Bearing Type - Tapered Roller Bearing
Metric :
Roller Diameter (mm) - 63.5
Roller Width (mm) - 38.1
For Shaft Diameter (mm) - 19.05
Overall Width (mm) - 39.6875
**Images are for representation purposes only
