Description
Brand - McMASTER-CARR
Item Number - 6321K44 McMASTER-CARR

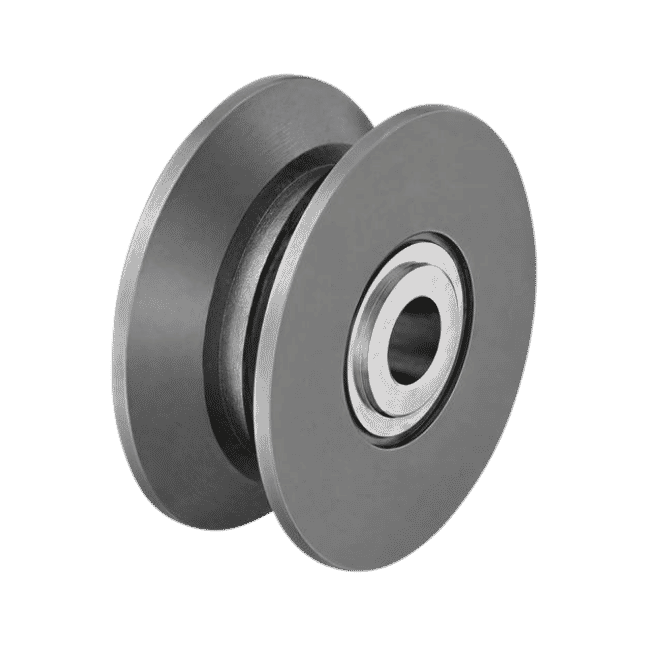

Category - Shaft-Mount V-Groove Track Rollers (Steel V-Groove Rollers without Seal)
Imperial :

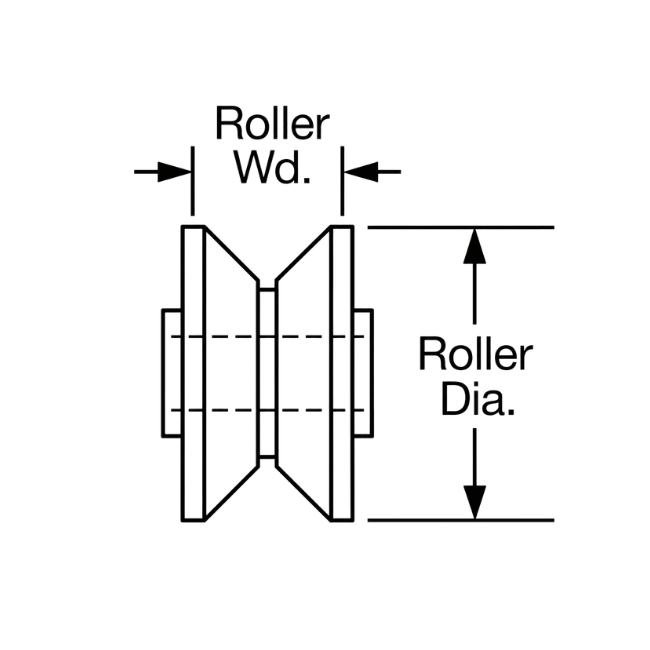

Roller Diameter (inch) - 0.8125
Roller Width (inch) - 0.3125
For Shaft Diameter (inch) - 0.1875
Overall Width (inch) - 0.3125
Groove Width (inch) - 0.1875
Groove Depth (inch) - 0.0625
Maximum Speed (rpm) - 5300
Radial Static Load Capacity (lbs) - 270
Radial Dynamic Load Capacity (lbs) - 270
Static Thrust Load Capacity (lbs) - 50
Maximum Temperature (°F) - 245°
Inside Bearing Type - Ball Bearing
Features - Shielded
Metric :
Roller Diameter (mm) - 20.6375
Roller Width (mm) - 7.9375
Overall Width (mm) - 7.9375
Groove Width (mm) - 4.7625
Groove Depth (mm) - 1.5875
**Images are for representation purposes only
