Description
Brand - FAG
Item Number - 6328-M FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 140
Outer Diameter (D) mm - 300
Width (B) mm - 62
Basic Dynamic Load Rating (Cr) N - 270000
Basic Static Load Rating (C0r) N - 246000
Fatigue Limit Load (Cur) N - 11500
Limiting Speed (nG) min–1 - 3850
Speed Rating (nϑr) min–1 - 3250
Calculation Factor (f0) - 13.6
Weight (m) kg - 22
Minimum Chamfer Dimension (r min) mm - 4
Shoulder Diameter Outer Ring (D1) mm - 248.8
Shoulder Diameter Inner Ring (d1) mm - 191.2

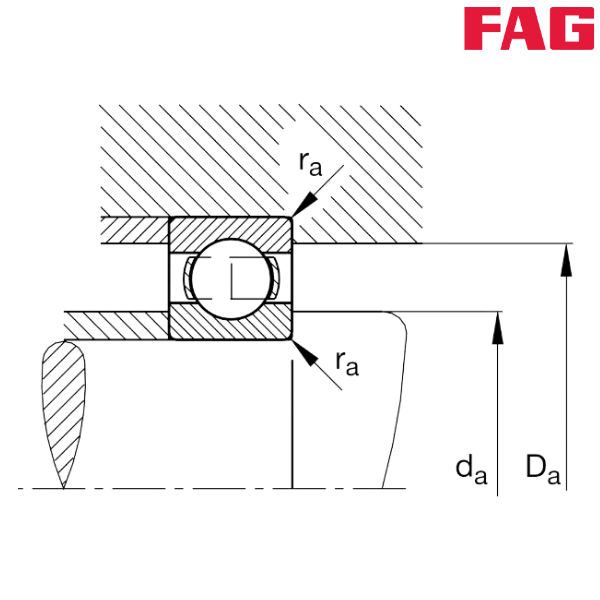

Minimum Diameter Shaft Shoulder (da) mm - 157
Maximum Diameter of Housing Shoulder (Da) mm - 283
Maximum Fillet Radius (ra) mm - 3
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
M - Solid Brass Cage, Ball-Guided
** Images are for representation purposes only
