Description
Brand - FAG
Item Number - 6415-M FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 75
Outer Diameter (D) mm - 190
Width (B) mm - 45
Basic Dynamic Load Rating (Cr) N - 141000
Basic Static Load Rating (C0r) N - 97000
Fatigue Limit Load (Cur) N - 6000
Limiting Speed (nG) min–1 - 6600
Speed Rating (nϑr) min–1 - 5600
Calculation Factor (f0) - 13.3
Weight (m) kg - 6.94
Minimum Chamfer Dimension (r min) mm - 3
Shoulder Diameter Outer Ring (D1) mm - 151.58
Shoulder Diameter Inner Ring (d1) mm - 114.38

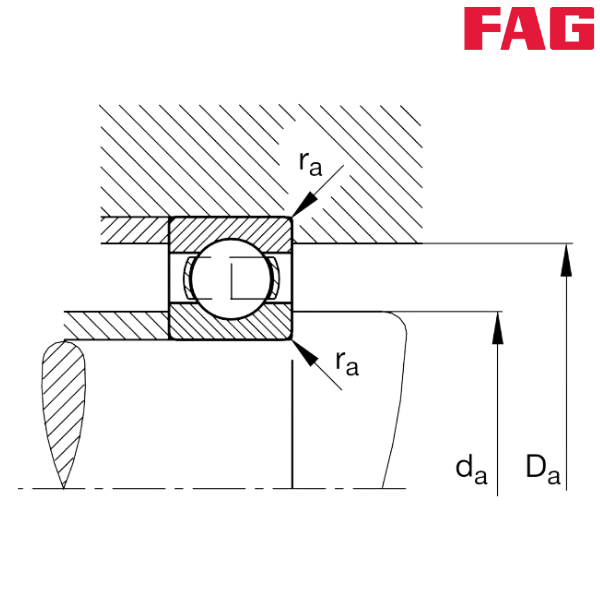

Minimum Diameter Shaft Shoulder (da) mm - 91
Maximum Diameter of Housing Shoulder (Da) mm - 174
Maximum Fillet Radius (ra) mm - 2.5
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
M - Solid Brass Cage, Ball-Guided
** Images are for representation purposes only
