Description
Brand - FAG
Item Number - 6416-M FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 80
Outer Diameter (D) mm - 200
Width (B) mm - 48
Basic Dynamic Load Rating (Cr) N - 173000
Basic Static Load Rating (C0r) N - 125000
Fatigue Limit Load (Cur) N - 7100
Limiting Speed (nG) min–1 - 5900
Speed Rating (nϑr) min–1 - 5400
Calculation Factor (f0) - 12.3
Weight (m) kg - 8.21
Minimum Chamfer Dimension (r min) mm - 3
Shoulder Diameter Outer Ring (D1) mm - 162.14
Shoulder Diameter Inner Ring (d1) mm - 117.94

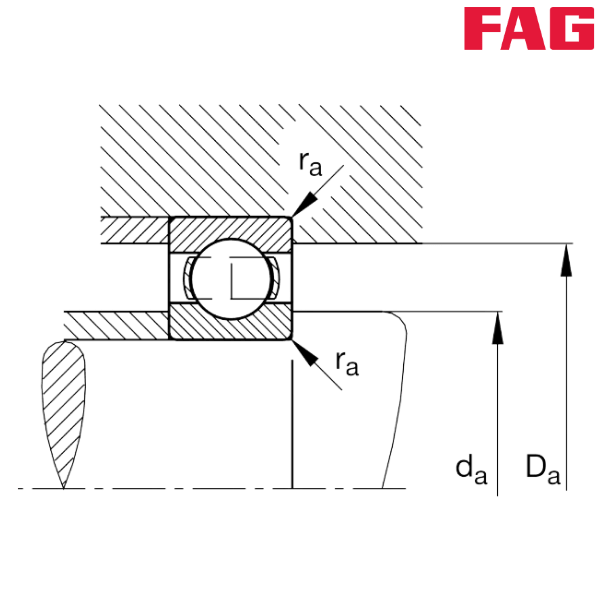

Minimum Diameter Shaft Shoulder (da) mm - 96
Maximum Diameter of Housing Shoulder (Da) mm - 184
Maximum Fillet Radius (ra) mm - 2.5
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
M - Solid Brass Cage, Ball-Guided
** Images are for representation purposes only
