Description
Brand - FAG
Item Number - 6417-M FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 85
Outer Diameter (D) mm - 210
Width (B) mm - 52
Basic Dynamic Load Rating (Cr) N - 184000
Basic Static Load Rating (C0r) N - 136000
Fatigue Limit Load (Cur) N - 7700
Limiting Speed (nG) min–1 - 5600
Speed Rating (nϑr) min–1 - 5300
Calculation Factor (f0) - 12.3
Weight (m) kg - 9.52
Minimum Chamfer Dimension (r min) mm - 4
Shoulder Diameter Outer Ring (D1) mm - 173.14
Shoulder Diameter Inner Ring (d1) mm - 123.36

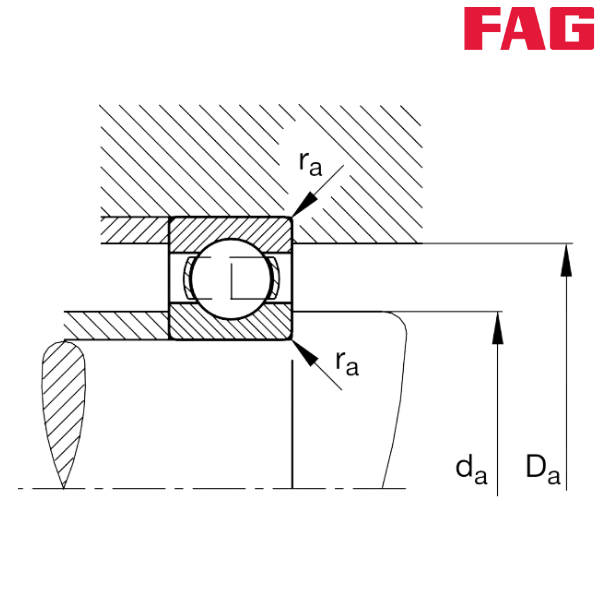

Minimum Diameter Shaft Shoulder (da) mm - 105
Maximum Diameter of Housing Shoulder (Da) mm - 190
Maximum Fillet Radius (ra) mm - 3
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
M - Solid Brass Cage, Ball-Guided
** Images are for representation purposes only
