Description
Brand - FAG
Item Number - 6418-M FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 90
Outer Diameter (D) mm - 225
Width (B) mm - 54
Basic Dynamic Load Rating (Cr) N - 209000
Basic Static Load Rating (C0r) N - 162000
Fatigue Limit Load (Cur) N - 9100
Limiting Speed (nG) min–1 - 5200
Speed Rating (nϑr) min–1 - 4950
Calculation Factor (f0) - 12.1
Weight (m) kg - 11.6
Minimum Chamfer Dimension (r min) mm - 4
Shoulder Diameter Outer Ring (D1) mm - 184.14
Shoulder Diameter Inner Ring (d1) mm - 132.1

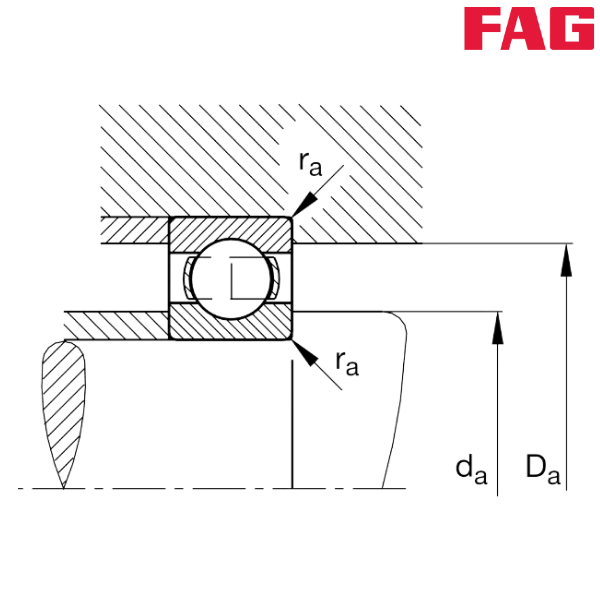

Minimum Diameter Shaft Shoulder (da) mm - 110
Maximum Diameter of Housing Shoulder (Da) mm - 205
Maximum Fillet Radius (ra) mm - 3
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
M - Solid Brass Cage, Ball-Guided
** Images are for representation purposes only
