67985D/67920 TIMKEN

Brand - TIMKEN
Item Number - 67985D/67920 TIMKEN
Also Known As - 67985D - 67920
Category - Double Row Tapered Roller Bearing (TDI Type)
Bore Diameter (d) mm - 206.375
Bore Diameter (d) inch - 8.125
Outer Diameter (D) mm - 282.575
Outer Diameter (D) inch - 11.125
Bearing Width across Cups (T) mm - 87.313
Bearing Width across Cups (T) inch - 3.4375
Double Cone Width (B) mm - 87.312
Double Cone Width (B) inch - 3.4375
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) N - 738000
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) lbf - 166000
Factor (e) - 0.5
Factor (Y1) - 1.3
Factor (Y2) - 2
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 110000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 24700
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 95800
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 21500
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 191000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 43000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.15
Maximum Shaft Fillet Radius (R) mm - 0.8
Maximum Shaft Fillet Radius (R) inch - 0.03
Cone Frontface Backing Diameter (da) mm - 219
Cone Frontface Backing Diameter (da) inch - 8.62
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Backface Backing Diameter (Db) mm - 260
Cup Backface Backing Diameter (Db) inch - 10.24
Geometry Factor (G1) - 819.5
Geometry Factor (G2) - 172
Geometry Factor (Cg) - 0.1388
Weight (kg) - 16.43
Weight (lbs) - 36.26
Inner Part Number - 67985D
Outer Part Number - 67920
TDI - Double Inner Ring

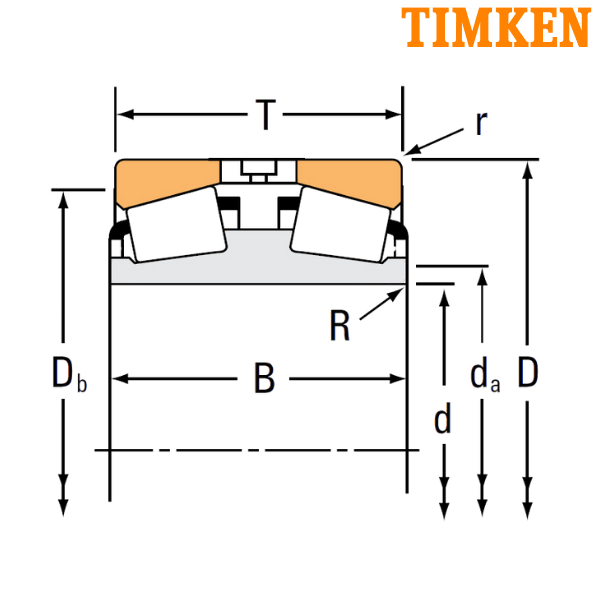

** Images are for representation purposes only
