Description
Brand - FAG
Item Number - 687-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 7
Outer Diameter (D) mm - 14
Width (B) mm - 5
Basic Dynamic Load Rating (Cr) N - 1180
Basic Static Load Rating (C0r) N - 511
Fatigue Limit Load (Cur) N - 13.6
Limiting Speed (nG) min–1 - 58000
Calculation Factor (f0) - 14.2
Weight (m) kg - 0.003
Minimum Chamfer Dimension (r min) mm - 0.15
Caliber Diameter Outer Ring (D2) mm - 12.7
Caliber Diameter Inner Ring (d2) mm - 8.5

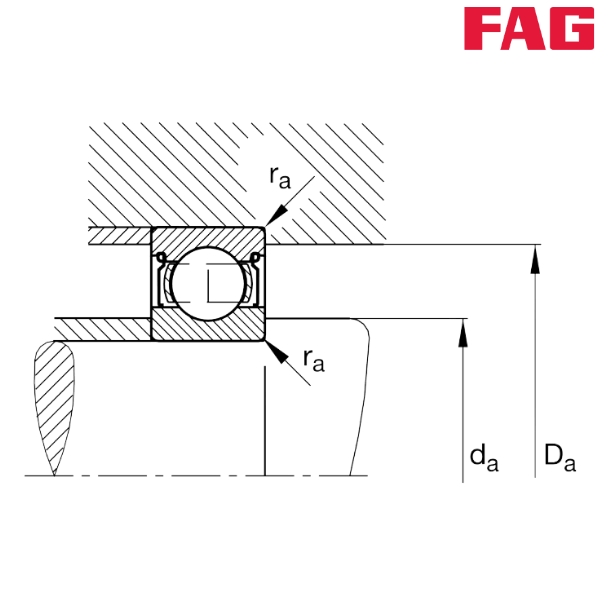

Minimum Diameter Shaft Shoulder (da) mm - 7.8
Maximum Diameter of Housing Shoulder (Da) mm - 13.2
Maximum Fillet Radius (ra) mm - 0.15
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
