Description
Brand - FAG
Item Number - 688-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 8
Outer Diameter (D) mm - 16
Width (B) mm - 5
Basic Dynamic Load Rating (Cr) N - 1260
Basic Static Load Rating (C0r) N - 590
Fatigue Limit Load (Cur) N - 15.7
Limiting Speed (nG) min–1 - 53000
Calculation Factor (f0) - 14.8
Weight (m) kg - 0.004
Minimum Chamfer Dimension (r min) mm - 0.2
Caliber Diameter Outer Ring (D2) mm - 14.2
Caliber Diameter Inner Ring (d2) mm - 9.65

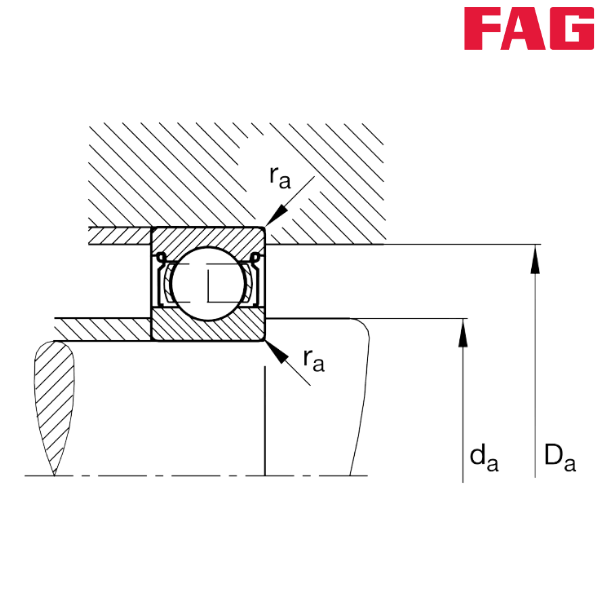

Minimum Diameter Shaft Shoulder (da) mm - 9.4
Maximum Diameter of Housing Shoulder (Da) mm - 14.6
Maximum Fillet Radius (ra) mm - 0.2
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
