Description
Brand - FAG
Item Number - 689-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 9
Outer Diameter (D) mm - 17
Width (B) mm - 5
Basic Dynamic Load Rating (Cr) N - 1330
Basic Static Load Rating (C0r) N - 664
Fatigue Limit Load (Cur) N - 17.6
Limiting Speed (nG) min–1 - 51000
Calculation Factor (f0) - 15.1
Weight (m) kg - 0.005
Minimum Chamfer Dimension (r min) mm - 0.2
Caliber Diameter Outer Ring (D2) mm - 15.2
Caliber Diameter Inner Ring (d2) mm - 10.7

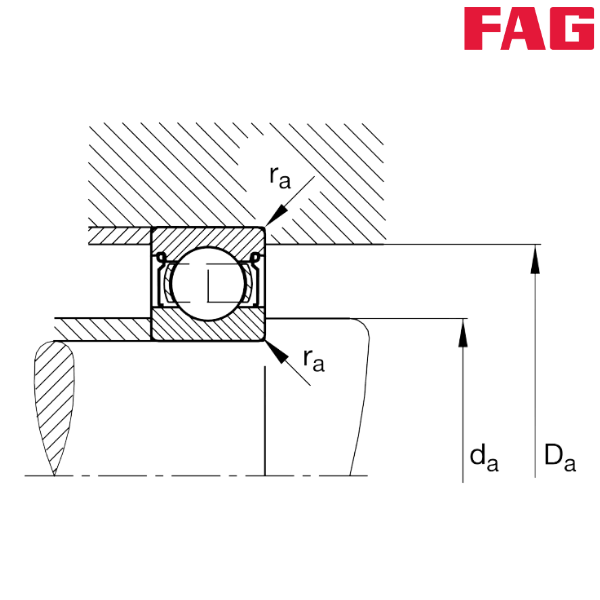

Minimum Diameter Shaft Shoulder (da) mm - 10.4
Maximum Diameter of Housing Shoulder (Da) mm - 15.6
Maximum Fillet Radius (ra) mm - 0.2
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
