Description
Brand - FAG
Item Number - 7320-B-XL-TVP FAG
Category - Angular Contact Ball Bearing Single Row
Bore diameter (d) mm - 100
Outside Diameter (D) mm - 215
Width (B) mm - 47
Basic Dynamic Load Rating, Radial (Cr) N - 214000
Basic Static Load Rating, Radial (C0r) N - 197000
Fatigue Load Limit, Radial (Cur) N - 10900
Limiting Speed (nG) min–1 - 3700
Reference Speed (nϑr) min–1 - 3550
Weight (m) kg - 7.16
Minimum Chamfer Dimension (r min) mm - 3
Minimum Chamfer Dimension (r1 min) mm - 1.1
Shoulder Diameter on Outer Ring Wide Side Face (D1) mm - 171.7
Shoulder Diameter on Inner Ring Wide Side Face (d1) mm - 146.3
Distance Between the Apexes of the Pressure Cones (a) mm - 90
Nominal Contact Angle (α)° - 40

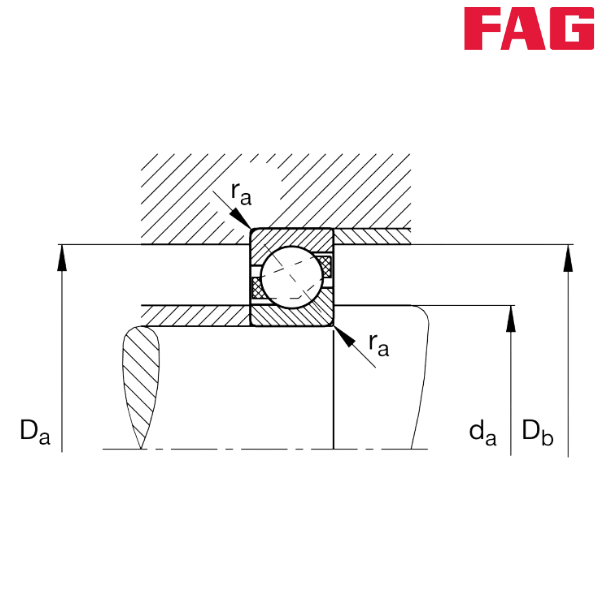

Minimum Diameter of Shaft Shoulder (da) mm - 114
Maximum Diameter of Housing Shoulder (Da) mm - 201
Maximum Diameter of Housing Shoulder (Db) mm - 208
Maximum Fillet Radius of Shaft (ra) mm - 2.5
Maximum Fillet Radius of Housing (ra1) mm - 1
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVP - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
** Images are for representation purposes only
