747026 DODGE - SNX 210

Brand - DODGE
Item Number - 747026 DODGE - SNX 210
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 210
LD Seal Item Number - 725358 DODGE - LD 60
FS Seal Item Number - 713616 DODGE - 6.5X8X230
VR Seal Item Number - 738146 DODGE - VS0060
DK End Cover Item Number - 709140 DODGE - DK 60
Spherical Roller Bearing Item Number - 421261 DODGE - 22210E1.C3
Fixing Ring Item Number - 747108 DODGE - SR 90x9
Fixing Ring Quantity - 2
Locknut Item Number - 046286 DODGE - KM 10
Lockwasher Item Number - 046305 DODGE - MB 10
Sight Glass Item Number - 740452 DODGE - SG 210
Weight (kg) - 5.1

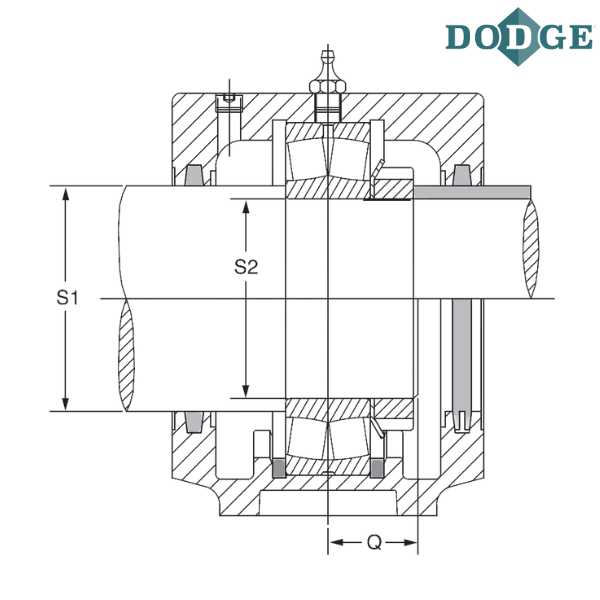

Shaft Size (S-1) mm - 60
Shaft Size (S-2) mm - 50

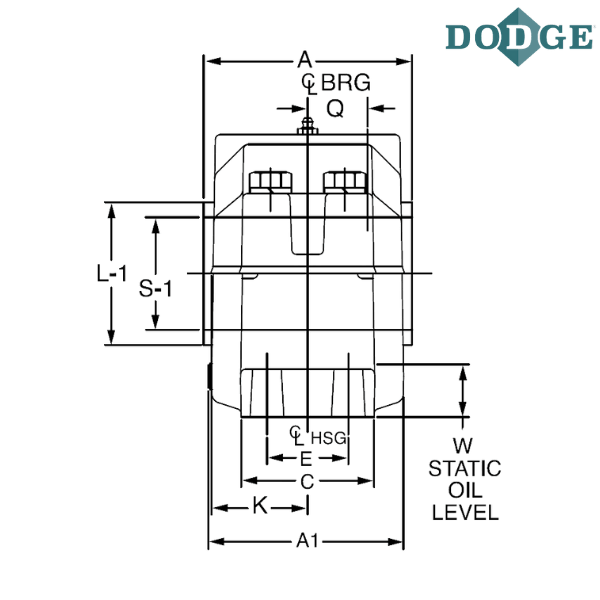

A1 (mm) - 99

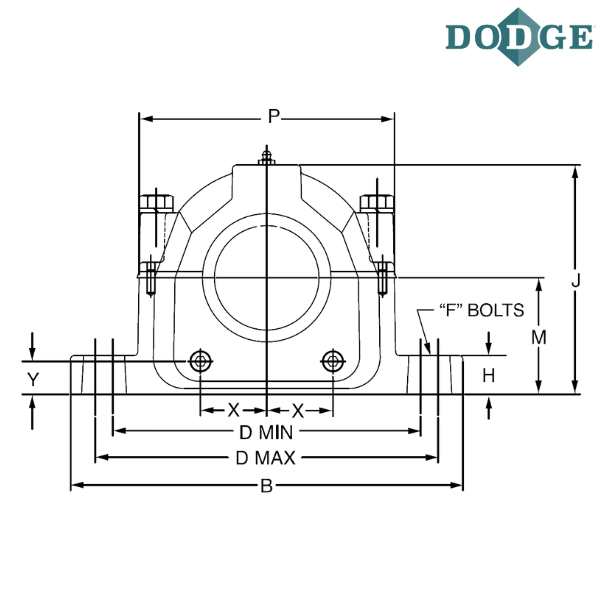

Overall Length (B) mm - 210
C (mm) - 60
Bolt to Bolt Minimum Distance (D min) mm - 165
Bolt to Bolt Maximum Distance (D max) mm - 178
F-Bolt Diameter - M12
H (mm) - 23
Overall Height (J) mm - 113
K (mm) - 48
Base to Center Height (M) mm - 60
P (mm) - 130
Q (mm) - 11.5
Static Oil Level (W) mm - 29
X (mm) - 31
Y (mm) - 17
A (With LD Seal) mm - 95
A (With FS Seal) mm - 95
A (With DK End Cover) mm - 95
A (With TS Seal) mm - 103
A (With VR Seal) mm - 105
L-1 (mm) - 64

Notes :
SNX - Plummer Block to 140 mm

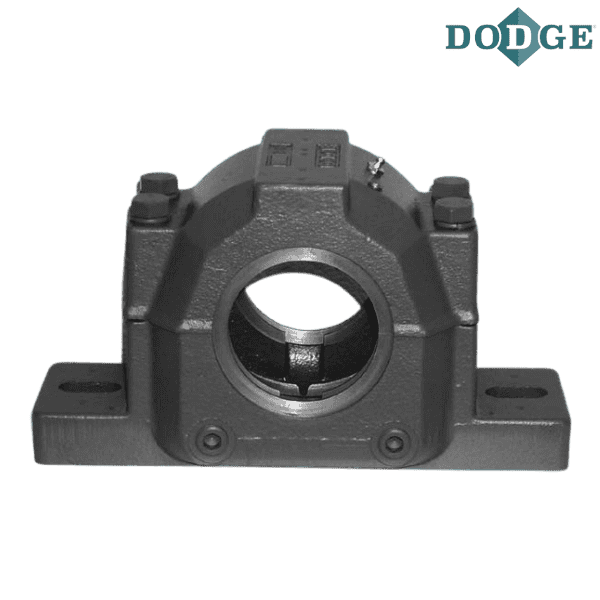

** Images are for representation purposes only
