747026 DODGE - SNX 510

Brand - DODGE
Item Number - 747026 DODGE - SNX 510
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 510
SK LD Seal Item Number - 496447 DODGE - SK 510 LD 45
SK FS Seal Item Number - 496465 DODGE - SK 510 FS 45
SK VR Seal Item Number - 496483 DODGE - SK 510 VR 45
Labyrinth Seal Item Number - 747329 DODGE - TS 510
Triple-Tect Seal Item Number - 747385 DODGE - TT 510
End Cover Item Number - 709140 DODGE - DK 60
Spherical Roller Bearing Item Number - 422137 DODGE - 22210EK1.C3
Fixing Ring Item Number - 747108 DODGE - SR 90x9
Fixing Ring Quantity - 2
Adapter Item Number - 046332 DODGE - H 310
Sight Glass Item Number - 740452 DODGE - SG 510
Self-aligning Ball Bearing Item Number - 052638 DODGE - 1210K.C3
Fixing Ring Item Number - 747178 DODGE - SR 90x10.5
Fixing Ring Quantity - 2
Adapter Item Number - 719373 DODGE - H 210
Self-aligning Ball Bearing Item Number - 702830 DODGE - 2210K.C3
Fixing Ring Item Number - 747108 DODGE - SR 90x9
Fixing Ring Quantity - 2
Adapter Item Number - 046332 DODGE - H 310
Weight (kg) - 5.1

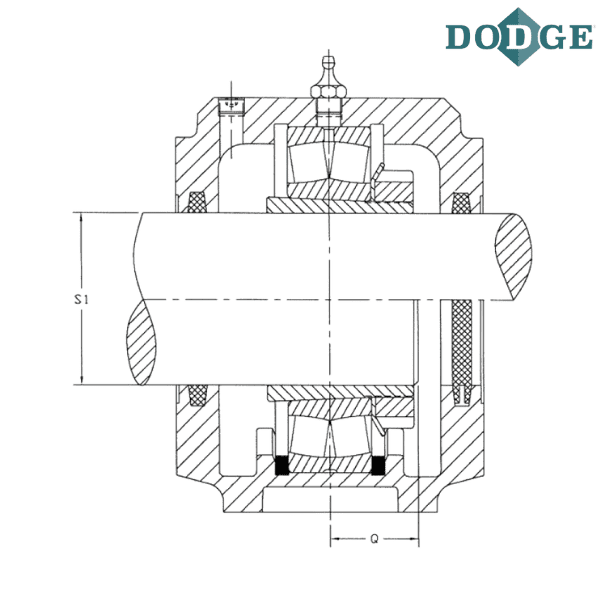

Shaft Size (S-1) mm - 45

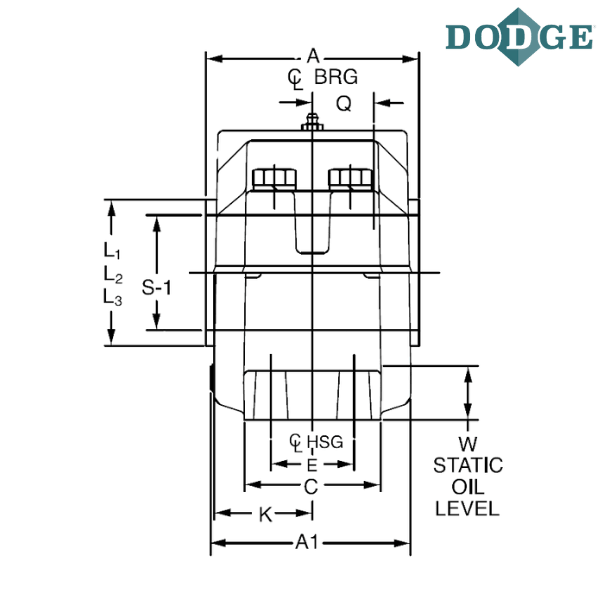

A1 (mm) - 99

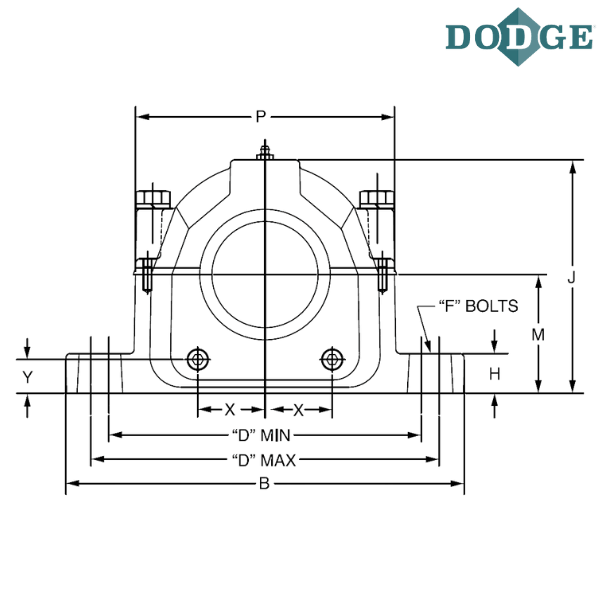

Overall Length (B) mm - 210
C (mm) - 60
Bolt to Bolt Minimum Distance (D min) mm - 165
Bolt to Bolt Maximum Distance (D max) mm - 178
F-Bolt Diameter - M12
H (mm) - 23
Overall Height (J) mm - 113
K (mm) - 48
Base to Center Height (M) mm - 60
P (mm) - 130
Q (mm) - 24
Static Oil Level (W) mm - 29
X (mm) - 31
Y (mm) - 17
A (With LD Seal) mm - 95
A (With FS Seal) mm - 95
A (With VR Seal) mm - 105
A (With TS Seal) mm - 103
A (With TT Seal) mm - 111
A (With DK End Cover) mm - 95
L1 (VR Seal) mm - 55
L2 (TS Seal) mm - 63
L3 (TT) mm - 70

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
