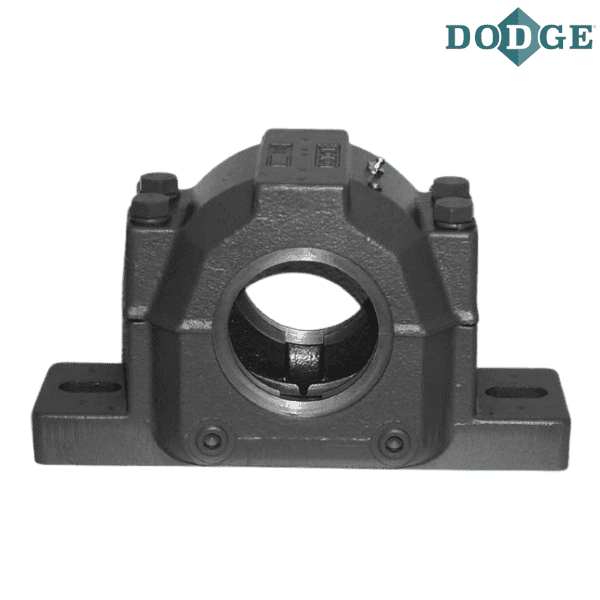

747026 DODGE - SNX 608

Brand - DODGE
Item Number - 747026 DODGE - SNX 608
Category - SNX 600 (Plummer Blocks for bearings 22300K)
Description - SNX 608
SK LD Seal Item Number - 496412 DODGE - SK 608 LD 35
SK FS Seal Item Number - 496423 DODGE - SK 608 FS 35
SK VR Seal Item Number - 496434 DODGE - SK 608 VR 35
End Cover Item Number - 709140 DODGE - DK 60
Spherical Roller Bearing Item Number - 423375 DODGE - 22308E1K.C3
Fixing Ring Item Number - 747107 DODGE - SR 90X4
Fixing Ring Quantity - 2
Adapter Item Number - 046710 DODGE - H 2308
Sight Glass Item Number - 740452 DODGE - SG 608
Weight (kg) - 5.1

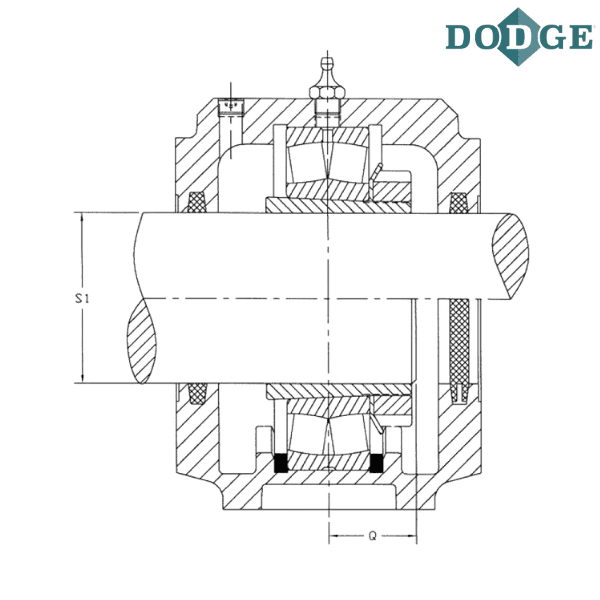

Shaft Size (S-1) mm - 35

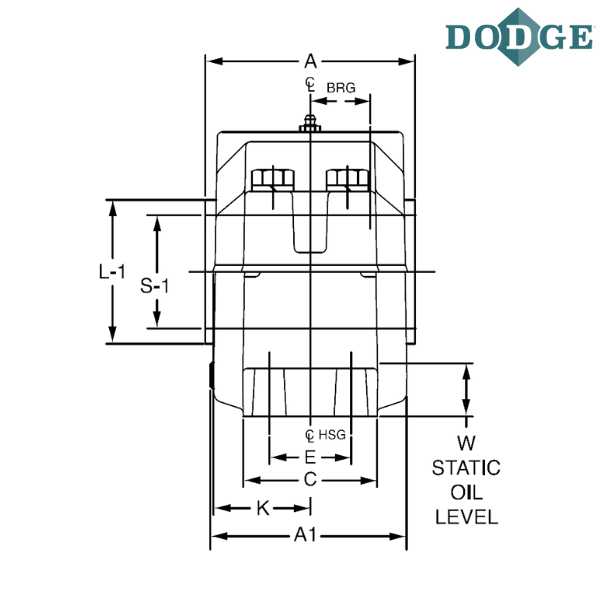

A1 (mm) - 99

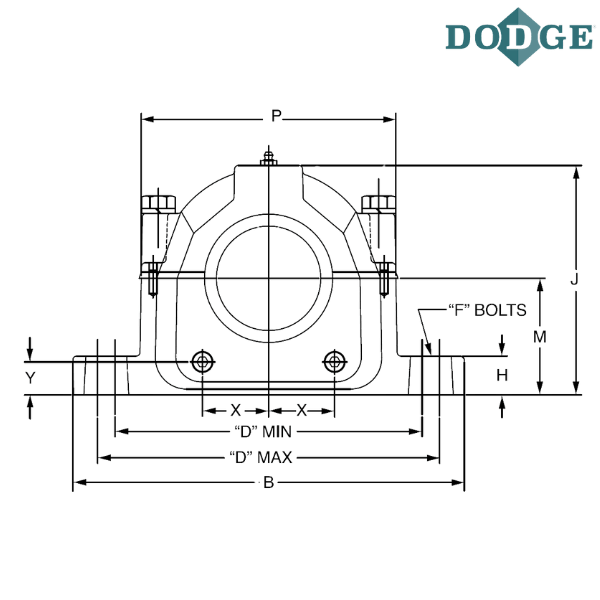

Overall Length (B) mm - 210
C (mm) - 60
Bolt to Bolt Minimum Distance (D min) mm - 165
Bolt to Bolt Maximum Distance (D max) mm - 178
F-Bolt Diameter - M12
H (mm) - 23
Overall Height (J) mm - 113
K (mm) - 48
Base to Center Height (M) mm - 60
P (mm) - 130
Q (mm) - 27
Static Oil Level (W) mm - 26.5
X (mm) - 31
Y (mm) - 17
A (With LD Seal) mm - 95
A (FS Seal) mm - 95
A (With End Cover) mm - 95
A (With VR Seal) mm - 103
L1 (VR Seal) mm - 43

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
