747027 DODGE - SNX 511

Brand - DODGE
Item Number - 747027 DODGE - SNX 511
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 511
SK LD Seal Item Number - 496448 DODGE - SK 511 LD 50
SK FS Seal Item Number - 496466 DODGE - SK 511 FS 50
SK VR Seal Item Number - 496484 DODGE - SK 511 VR 50
Labyrinth Seal Item Number - 747330 DODGE - TS 511
Triple-Tect Seal Item Number - 747386 DODGE - TT 511
End Cover Item Number - 709143 DODGE - DK 65
Spherical Roller Bearing Item Number - 422123 DODGE - 22211EK1.C3
Fixing Ring Item Number - 747111 DODGE - SR 100x9.5
Fixing Ring Quantity - 2
Adapter Item Number - 046219 DODGE - H 311
Sight Glass Item Number - 740452 DODGE - SG 511
Self-aligning Ball Bearing Item Number - 052639 DODGE - 1211K.C3
Fixing Ring Item Number - 747179 DODGE - SR 100x12
Fixing Ring Quantity - 2
Adapter Item Number - 719374 DODGE - H 211
Self-aligning Ball Bearing Item Number - 702844 DODGE - 2211K.C3
Fixing Ring Item Number - 747111 DODGE - SR 100x9.5
Fixing Ring Quantity - 2
Adapter Item Number - 046219 DODGE - H 311
Weight (kg) - 7.1

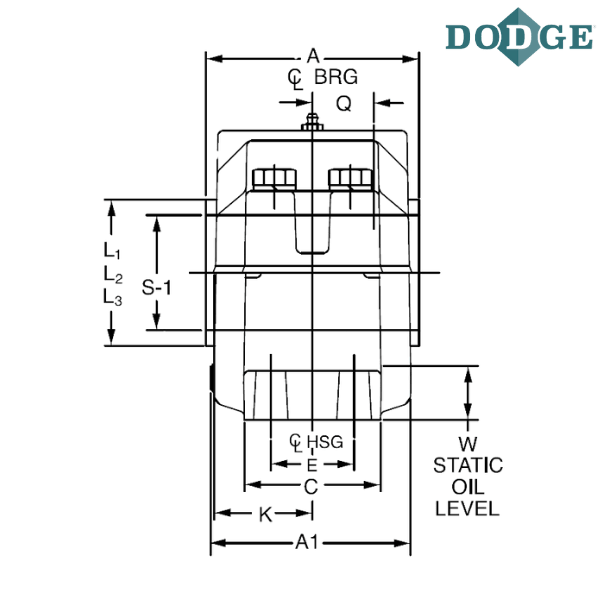

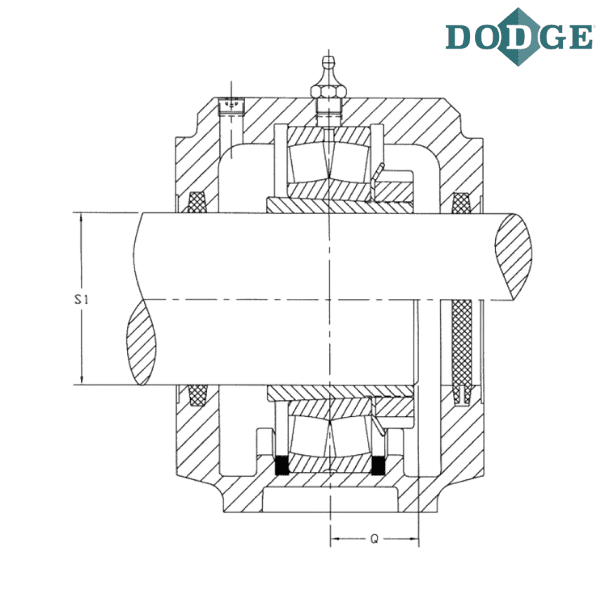

Shaft Size (S-1) mm - 50
A1 (mm) - 104

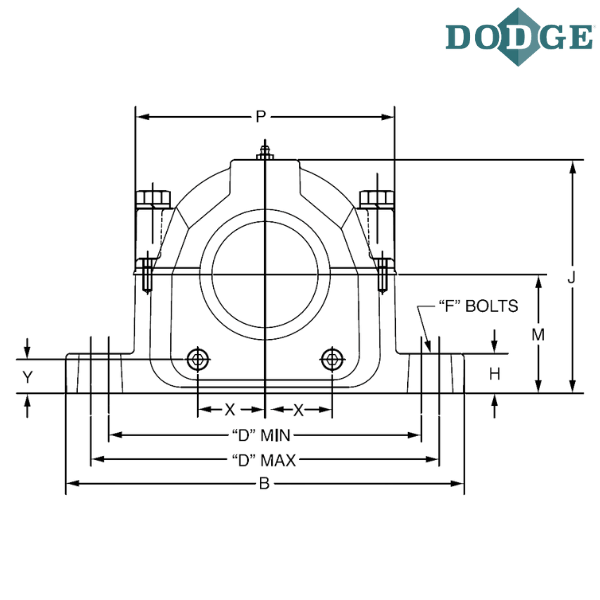

Overall Length (B) mm - 244
C (mm) - 70
Bolt to Bolt Minimum Distance (D min) mm - 187
Bolt to Bolt Maximum Distance (D max) mm - 210
F-Bolt Diameter - M16
H (mm) - 26
Overall Height (J) mm - 133
K (mm) - 50
Base to Center Height (M) mm - 70
P (mm) - 147
Q (mm) - 25
Static Oil Level (W) mm - 28.5
X (mm) - 33
Y (mm) - 22
A (With LD Seal) mm - 100
A (With FS Seal) mm - 100
A (With VR Seal) mm - 110
A (With TS Seal) mm - 108
A (With TT Seal) mm - 116
A (With DK End Cover) mm - 100
L1 (VR Seal) mm - 60
L2 (TS Seal) mm - 68
L3 (TT) mm - 75

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
