747028 DODGE - SNX 310

Brand - DODGE
Item Number - 747028 DODGE - SNX 310
Category - SNX 300 (Plummer Blocks for bearings 22300)
Description - SNX 310
SK FS Seal Item Number - 496402 DODGE - SK 310 FS 60
End Cover Item Number - 709146 DODGE - DK 70
Sight Glass Item Number - 740452 DODGE - SG 310
Spherical Roller Bearing Item Number - 423143 DODGE - 22310E1.C3
Fixing Ring Item Number - 747114 DODGE - SR 110X4
Fixing Ring Quantity - 2
Locknut Item Number - 046286 DODGE - KM 10
Lockwasher Item Number - 046305 DODGE - MB 10
Weight (kg) - 9.5

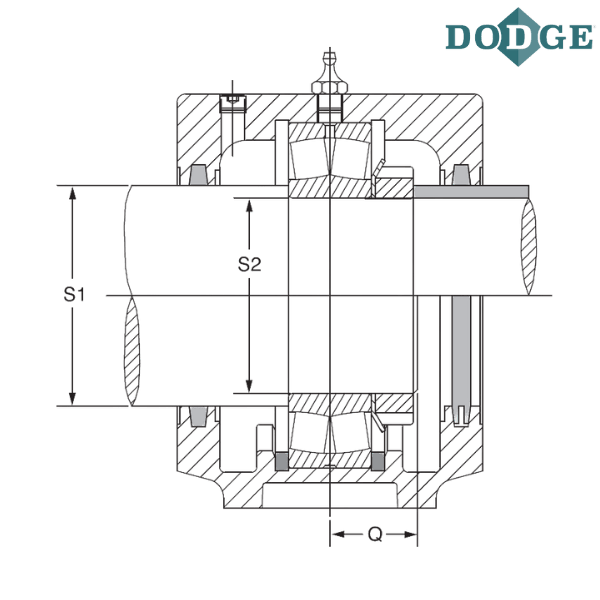

Shaft Size (S-1) mm - 60
Shaft Size (S-2) mm - 50

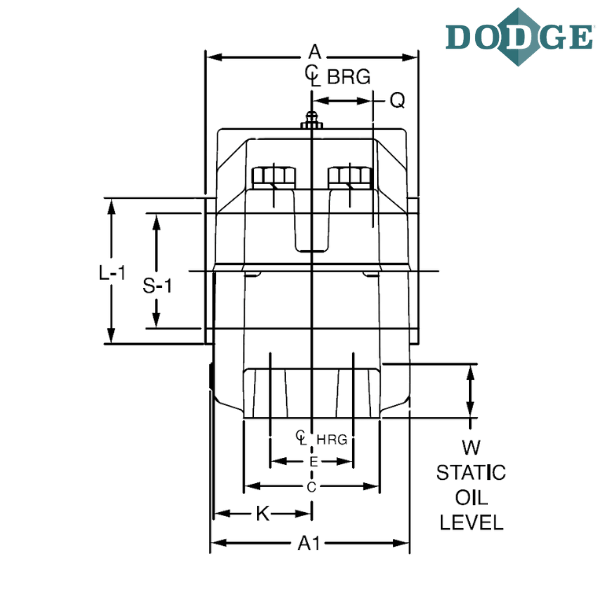

A1 (mm) - 115.8

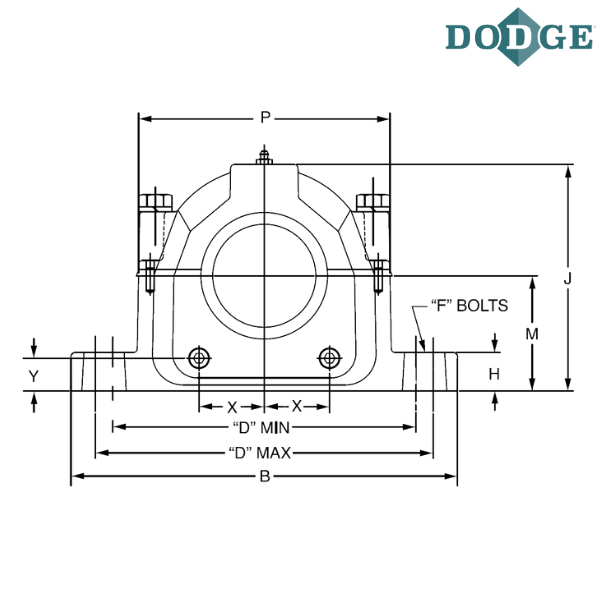

Overall Length (B) mm - 269.9
C (mm) - 69.9
Bolt to Bolt Minimum Distance (D min) mm - 196.9
Bolt to Bolt Maximum Distance (D max) mm - 229.6
F-Bolt Diameter - M16
H (mm) - 29.4
Overall Height (J) mm - 138.9
K (mm) - 56
Base to Center Height (M) mm - 69.9
P (mm) - 155.6
Q (mm) - 20
Static Oil Level (W) mm - 28.6
X (mm) - 38
Y (mm) - 19.5
A (With FS Seal) mm - 112
A (With DK End Cover) mm - 112
L1 (mm) - 75.2

Notes :
SNX - Plummer Block to 140 mm

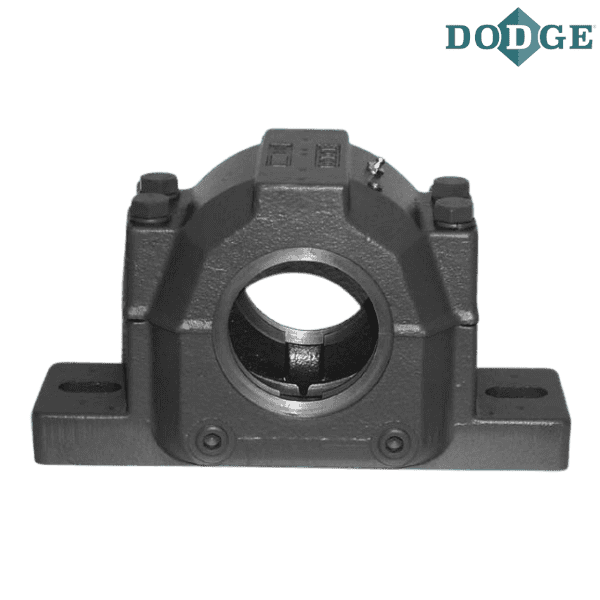

** Images are for representation purposes only
