747028 DODGE - SNX 610

Brand - DODGE
Item Number - 747028 DODGE - SNX 610
Category - SNX 600 (Plummer Blocks for bearings 22300K)
Description - SNX 610
SK LD Seal Item Number - 496414 DODGE - SK 610 LD 45
SK FS Seal Item Number - 496425 DODGE - SK 610 FS 45
SK VR Seal Item Number - 496436 DODGE - SK 610 VR 45
End Cover Item Number - 709146 DODGE - DK 70
Spherical Roller Bearing Item Number - 423372 DODGE - 22310E1K.C3
Fixing Ring Item Number - 747114 DODGE - SR 110X4
Fixing Ring Quantity - 2
Adapter Item Number - 046712 DODGE - H 2310
Sight Glass Item Number - 740452 DODGE - SG 610
Weight (kg) - 9.5

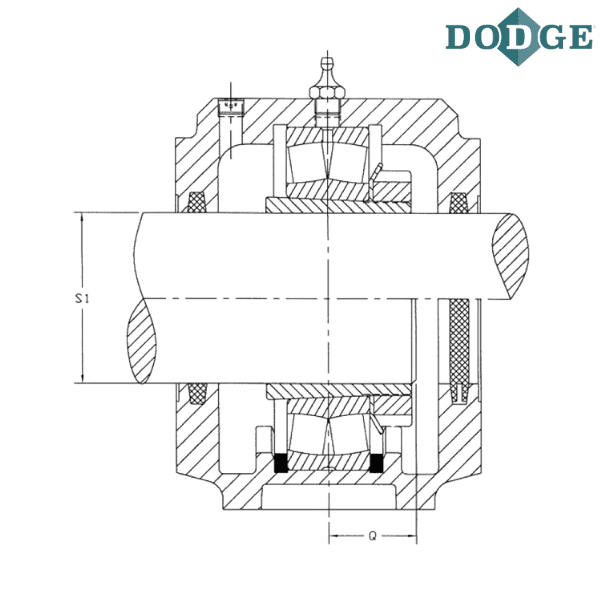

Shaft Size (S-1) mm - 45

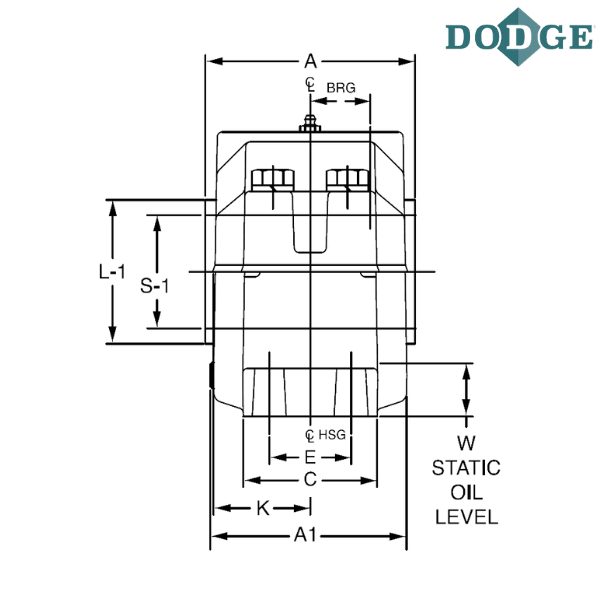

A1 (mm) - 116

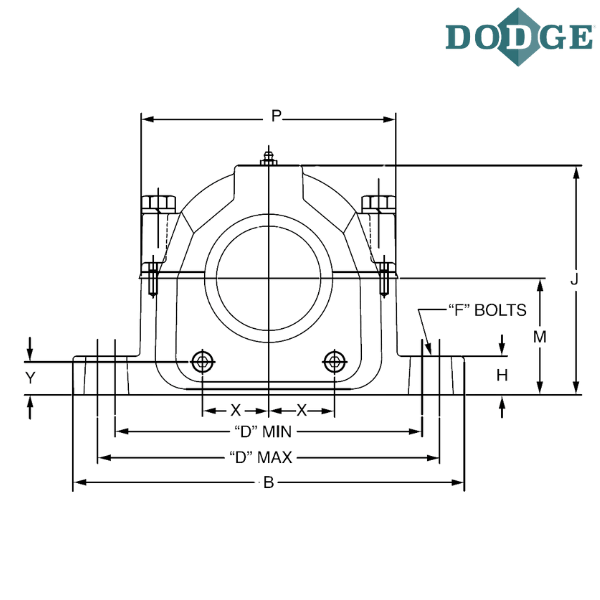

Overall Length (B) mm - 270
C (mm) - 70
Bolt to Bolt Minimum Distance (D min) mm - 197
Bolt to Bolt Maximum Distance (D max) mm - 230
F-Bolt Diameter - M16
H (mm) - 29
Overall Height (J) mm - 139
K (mm) - 56
Base to Center Height (M) mm - 70
P (mm) - 156
Q (mm) - 32
Static Oil Level (W) mm - 28.6
X (mm) - 38
Y (mm) - 20
A (With LD Seal) mm - 112
A (FS Seal) mm - 112
A (With End Cover) mm - 112
A (With VR Seal) mm - 121
L1 (VR Seal) mm - 55

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
