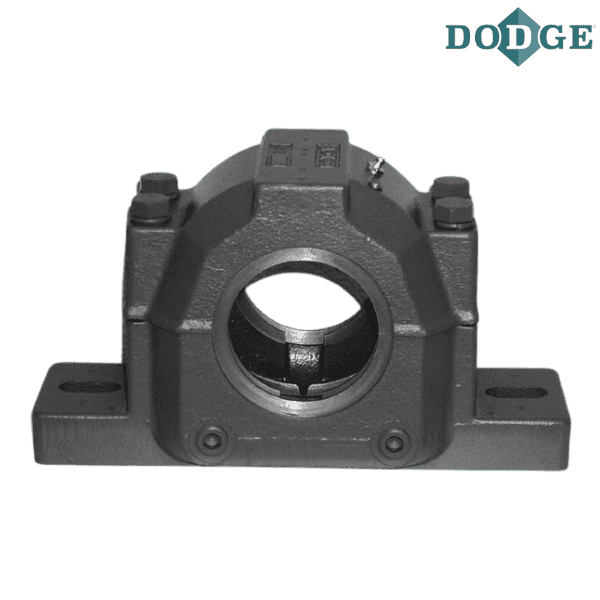

747029 DODGE - SNX 311

Brand - DODGE
Item Number - 747029 DODGE - SNX 311
Category - SNX 300 (Plummer Blocks for bearings 22300)
Description - SNX 311
SK FS Seal Item Number - 496403 DODGE - SK 311 FS 65
End Cover Item Number - 709152 DODGE - DK 75
Sight Glass Item Number - 740452 DODGE - SG 311
Spherical Roller Bearing Item Number - 423126 DODGE - 22311E1.C3
Fixing Ring Item Number - 747117 DODGE - SR 120X4
Fixing Ring Quantity - 2
Locknut Item Number - 046287 DODGE - KM11
Lockwasher Item Number - 046306 DODGE - MB11
Weight (kg) - 9.7

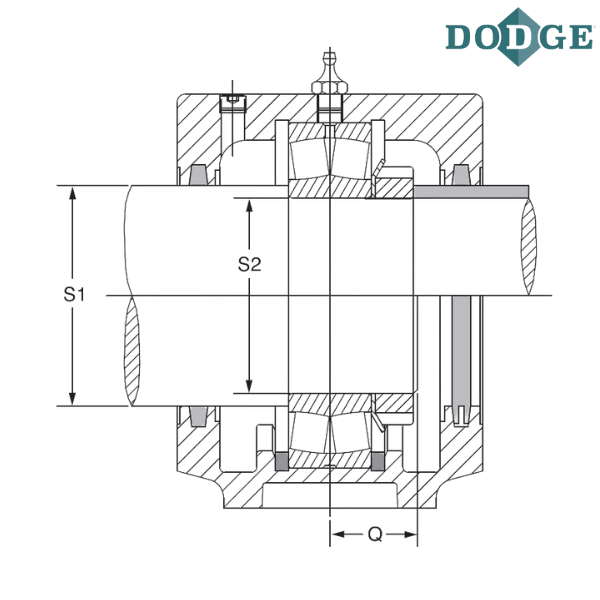

Shaft Size (S-1) mm - 65
Shaft Size (S-2) mm - 55

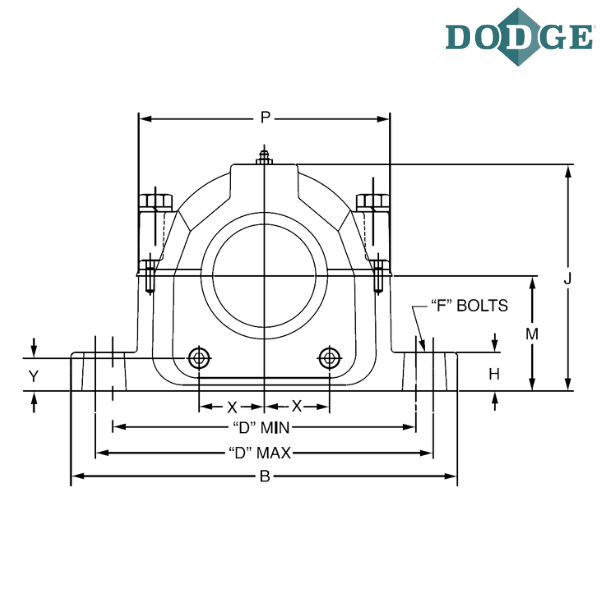

A1 (mm) - 113.3
Overall Length (B) mm - 279.4
C (mm) - 80
Bolt to Bolt Minimum Distance (D min) mm - 206.4
Bolt to Bolt Maximum Distance (D max) mm - 241.3
F-Bolt Diameter - M16
H (mm) - 30.2
Overall Height (J) mm - 154.8
K (mm) - 54.8
Base to Center Height (M) mm - 79.9
P (mm) - 165.1
Q (mm) - 21.5

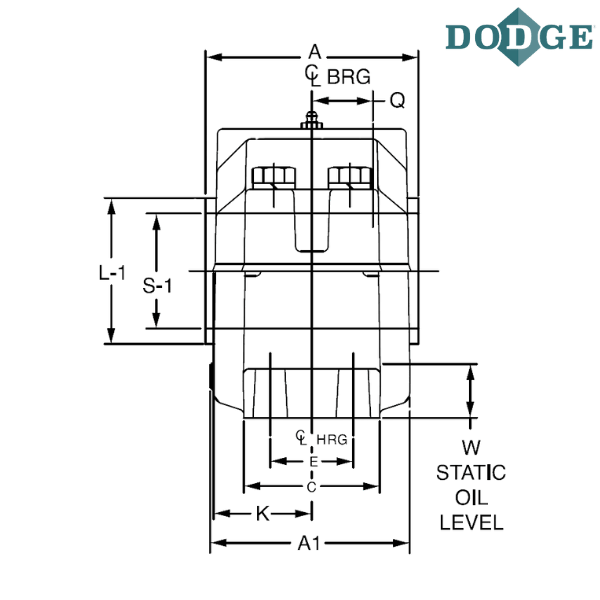

Static Oil Level (W) mm - 33.9
X (mm) - 41.1
Y (mm) - 25
A (With FS Seal) mm - 109.5
A (With DK End Cover) mm - 109.5
L1 (mm) - 79.2

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
