747030 DODGE - SNX 215

Brand - DODGE
Item Number - 747030 DODGE - SNX 215
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 215
LD Seal Item Number - 725363 DODGE - LD 85
FS Seal Item Number - 713571 DODGE - 7.5X9X155
VR Seal Item Number - 738151 DODGE - VS0085
DK End Cover Item Number - 709162 DODGE - DK 85
Spherical Roller Bearing Item Number - 421265 DODGE - 22215E1.C3
Fixing Ring Item Number - 747121 DODGE - SR 130x12.5
Fixing Ring Quantity - 2
Locknut Item Number - 046289 DODGE - KM 15
Lockwasher Item Number - 046308 DODGE - MB 15
Sight Glass Item Number - 740452 DODGE - SG 215
Weight (kg) - 11.3

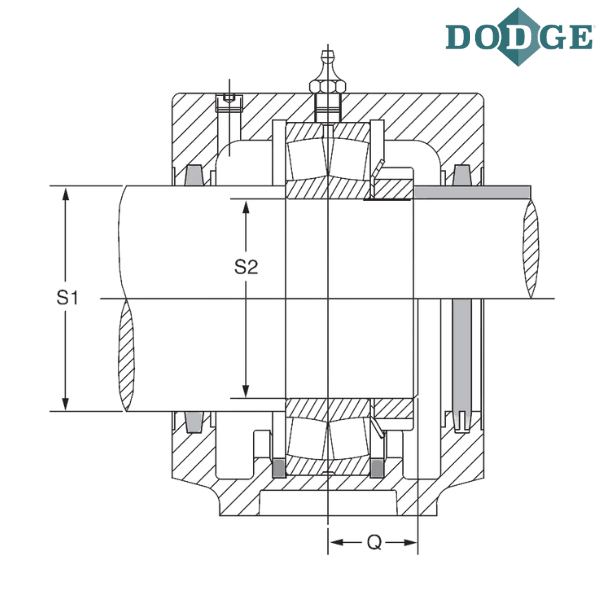

Shaft Size (S-1) mm - 85
Shaft Size (S-2) mm - 75

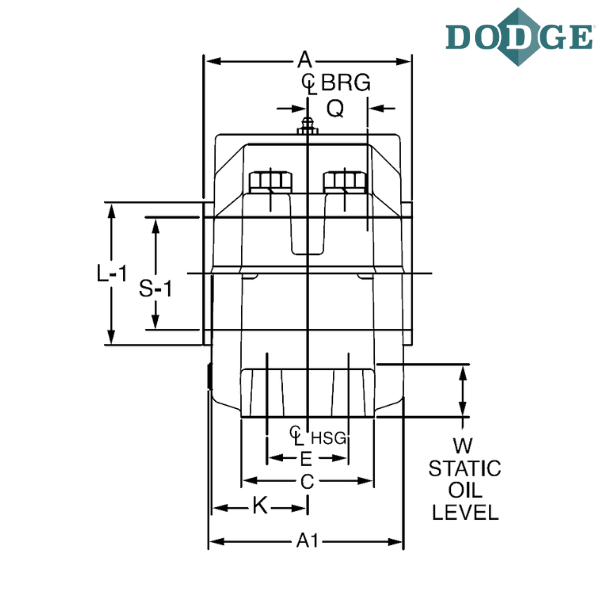

A1 (mm) - 121
Overall Length (B) mm - 283
C (mm) - 80

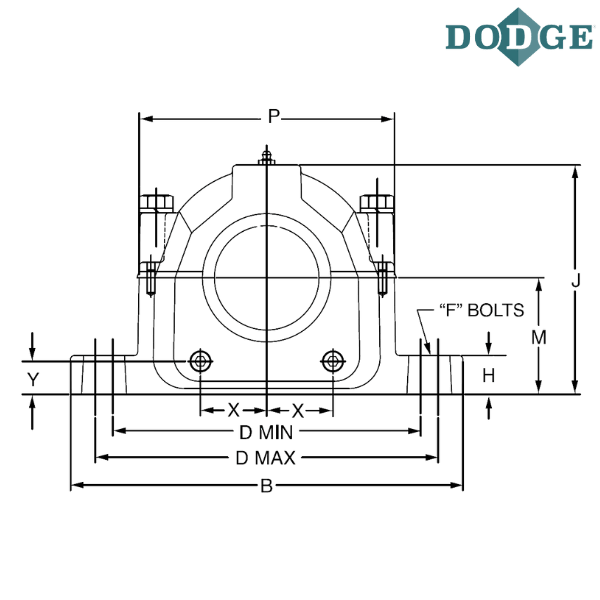

Bolt to Bolt Minimum Distance (D min) mm - 219
Bolt to Bolt Maximum Distance (D max) mm - 245
F-Bolt Diameter - M16
H (mm) - 29
Overall Height (J) mm - 161
K (mm) - 59
Base to Center Height (M) mm - 80
P (mm) - 179
Q (mm) - 15.5
Static Oil Level (W) mm - 38
X (mm) - 44
Y (mm) - 21
A (With LD Seal) mm - 117
A (With FS Seal) mm - 117
A (With DK End Cover) mm - 117
A (With TS Seal) mm - 126
A (With VR Seal) mm - 128
L-1 (mm) - 88

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
