747030 DODGE - SNX 312

Brand - DODGE
Item Number - 747030 DODGE - SNX 312
Category - SNX 300 (Plummer Blocks for bearings 22300)

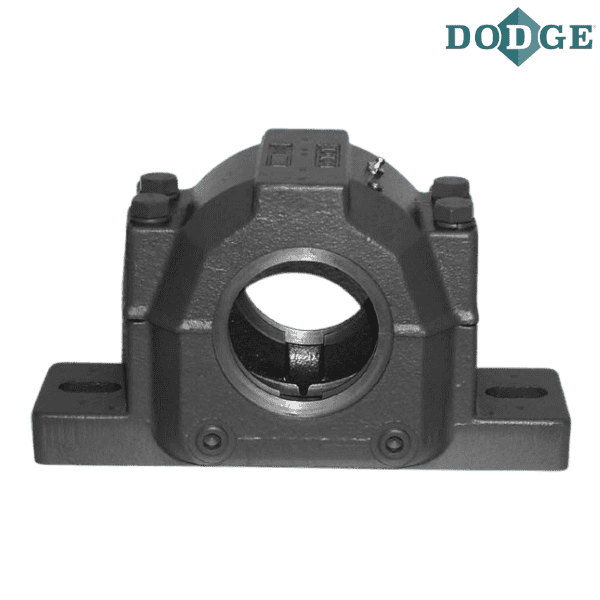

Description - SNX 312
SK FS Seal Item Number - 496404 DODGE - SK 312 FS 70
End Cover Item Number - 709162 DODGE - DK 85
Sight Glass Item Number - 740452 DODGE - SG 312
Spherical Roller Bearing Item Number - 423127 DODGE - 22312E1.C3
Fixing Ring Item Number - 747120 DODGE - SR 130X4
Fixing Ring Quantity - 2
Locknut Item Number - 046487 DODGE - KM 12
Lockwasher Item Number - 046489 DODGE - MB 12
Weight (kg) - 11.3

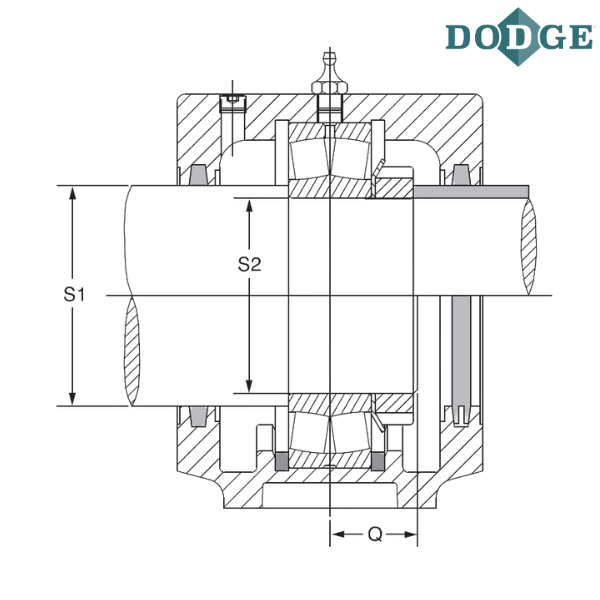

Shaft Size (S-1) mm - 70
Shaft Size (S-2) mm - 60

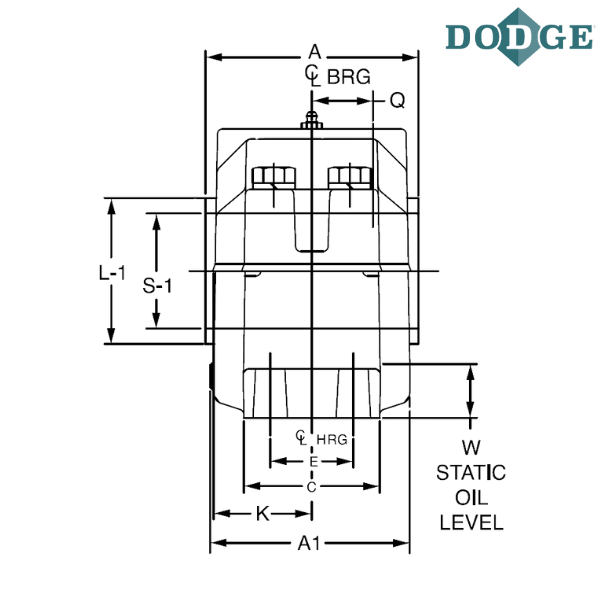

A1 (mm) - 121.2

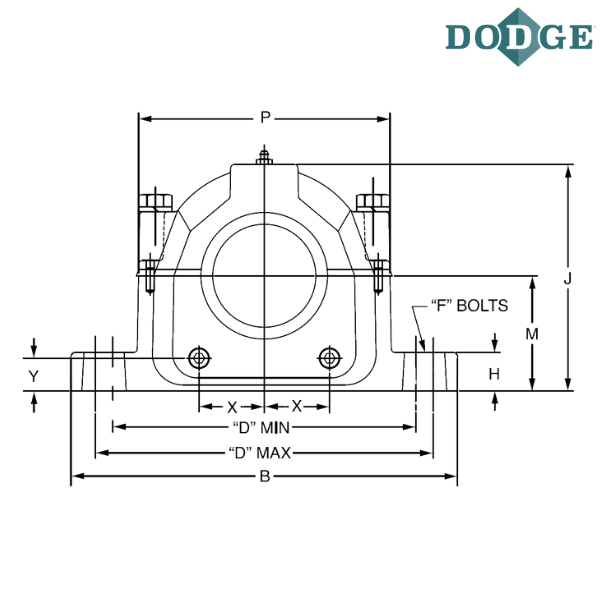

Overall Length (B) mm - 282.6
C (mm) - 80
Bolt to Bolt Minimum Distance (D min) mm - 219.1
Bolt to Bolt Maximum Distance (D max) mm - 244.5
F-Bolt Diameter - M16
H (mm) - 29.4
Overall Height (J) mm - 161.1
K (mm) - 58.7
Base to Center Height (M) mm - 79.9
P (mm) - 179.4
Q (mm) - 23
Static Oil Level (W) mm - 30.7
X (mm) - 44
Y (mm) - 20.5
A (With FS Seal) mm - 117.4
A (With DK End Cover) mm - 117.4
L1 (mm) - 88.1

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
