747031 DODGE - SNX 516

Brand - DODGE
Item Number - 747031 DODGE - SNX 516
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 516
SK LD Seal Item Number - 496452 DODGE - SK 516 LD 70
SK FS Seal Item Number - 496470 DODGE - SK 516 FS 70
SK VR Seal Item Number - 496488 DODGE - SK 516 VR 70
Labyrinth Seal Item Number - 747334 DODGE - TS 516
Triple-Tect Seal Item Number - 747390 DODGE - TT 516
End Cover Item Number - 709166 DODGE - DK 90
Spherical Roller Bearing Item Number - 422003 DODGE - 22216EK1.C3
Fixing Ring Item Number - 747123 DODGE - SR 140x12.5
Fixing Ring Quantity - 2
Adapter Item Number - 046223 DODGE - H 316
Sight Glass Item Number - 740452 DODGE - SG 516
Self-aligning Ball Bearing Item Number - 052642 DODGE - 1216K.C3
Fixing Ring Item Number - 747183 DODGE - SR 140x16
Fixing Ring Quantity - 2
Adapter Item Number - 719379 DODGE - H 216
Self-aligning Ball Bearing Item Number - 702883 DODGE - 2216K.C3
Fixing Ring Item Number - 747123 DODGE - SR 140x12.5
Fixing Ring Quantity - 2
Adapter Item Number - 046223 DODGE - H 316
Weight (kg) - 12.7

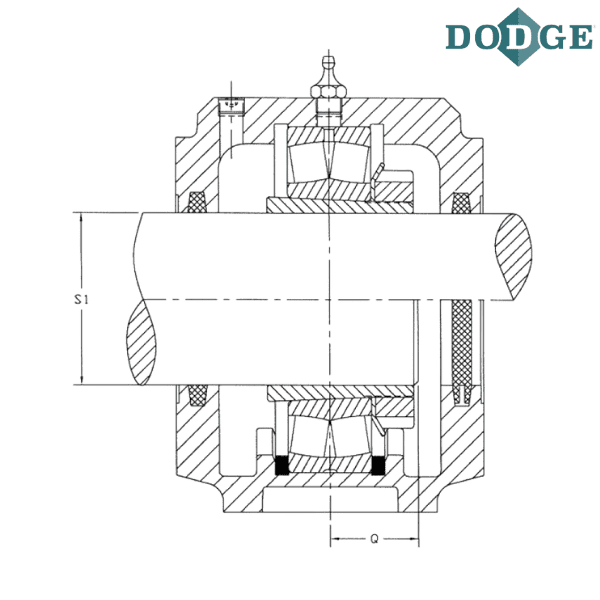

Shaft Size (S-1) mm - 70

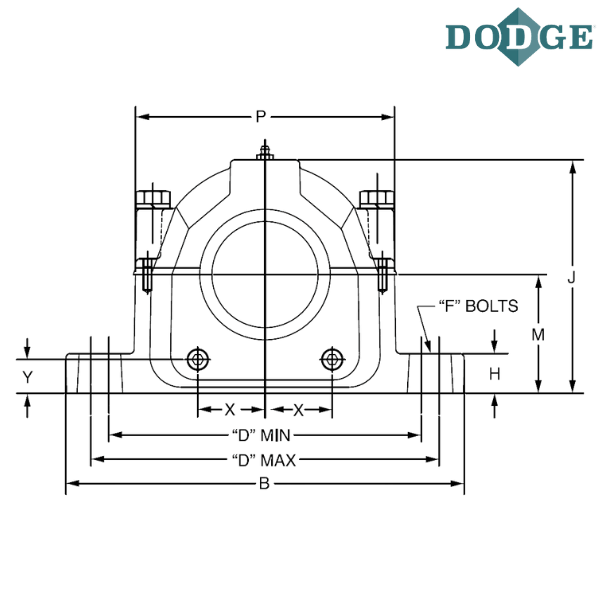

A1 (mm) - 127
Overall Length (B) mm - 320
C (mm) - 90
Bolt to Bolt Minimum Distance (D min) mm - 245
Bolt to Bolt Maximum Distance (D max) mm - 279
F-Bolt Diameter - M20
H (mm) - 33
Overall Height (J) mm - 178
K (mm) - 62
Base to Center Height (M) mm - 95
P (mm) - 202
Q (mm) - 34
Static Oil Level (W) mm - 34.5
X (mm) - 49
Y (mm) - 31

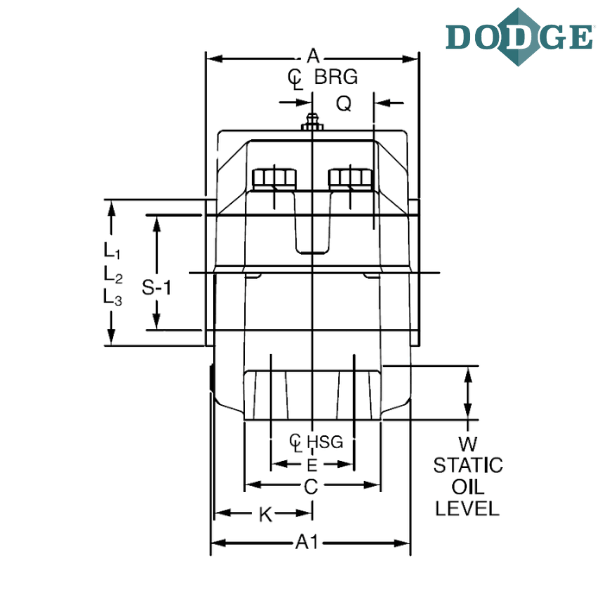

A (With LD Seal) mm - 123
A (With FS Seal) mm - 123
A (With VR Seal) mm - 136
A (With TS Seal) mm - 134
A (With TT Seal) mm - 143
A (With DK End Cover) mm - 123
L1 (VR Seal) mm - 82
L2 (TS Seal) mm - 94
L3 (TT) mm - 102

Notes :
SNX - Plummer Block to 140 mm
