747032 DODGE - SNX 314

Brand - DODGE
Item Number - 747032 DODGE - SNX 314
Category - SNX 300 (Plummer Blocks for bearings 22300)
Description - SNX 314
SK FS Seal Item Number - 496406 DODGE - SK 314 FS 80
End Cover Item Number - 709166 DODGE - DK 90
Sight Glass Item Number - 740453 DODGE - SG 314
Spherical Roller Bearing Item Number - 423129 DODGE - 22314E1.C3
Fixing Ring Item Number - 747124 DODGE - SR 150X5
Fixing Ring Quantity - 2
Locknut Item Number - 046238 DODGE - KM 14
Lockwasher Item Number - 046239 DODGE - MB 14
Weight (kg) - 15.7

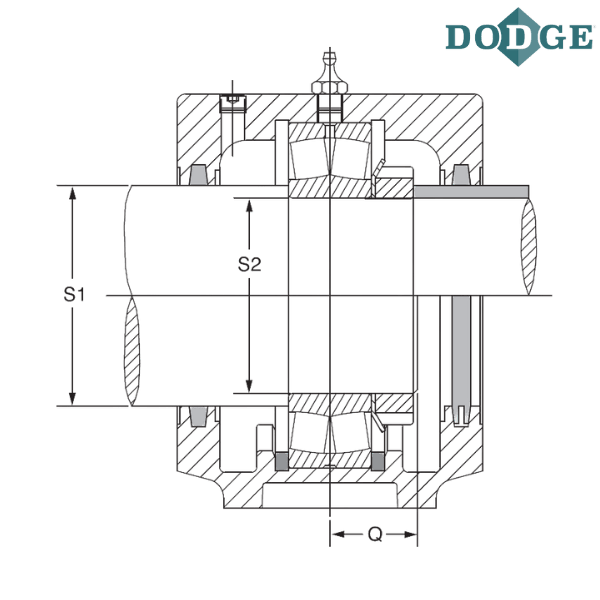

Shaft Size (S-1) mm - 80
Shaft Size (S-2) mm - 70

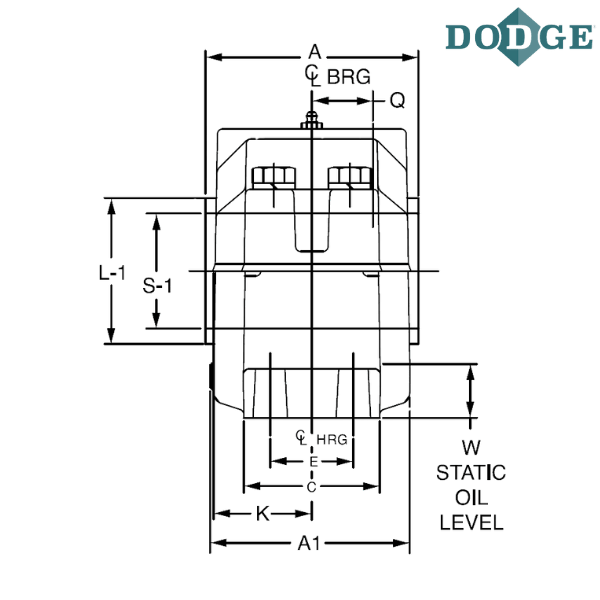

A1 (mm) - 131.6
Overall Length (B) mm - 319.7
C (mm) - 90

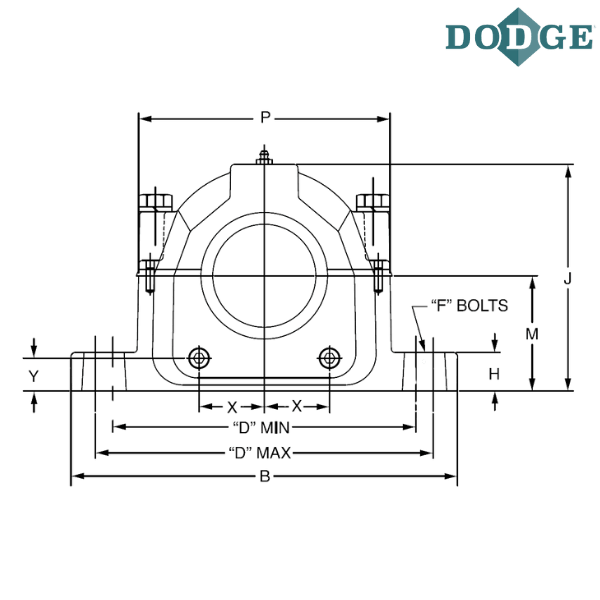

Bolt to Bolt Minimum Distance (D min) mm - 250.8
Bolt to Bolt Maximum Distance (D max) mm - 279.4
F-Bolt Diameter - M20
H (mm) - 31.8
Overall Height (J) mm - 187.4
K (mm) - 62.7
Base to Center Height (M) mm - 94.9
P (mm) - 208
Q (mm) - 25.5
Static Oil Level (W) mm - 37.3
X (mm) - 52.6
Y (mm) - 28
A (With FS Seal) mm - 125.2
A (With DK End Cover) mm - 125.2
L1 (mm) - 97.3

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
