747032 DODGE - SNX 517

Brand - DODGE
Item Number - 747032 DODGE - SNX 517
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 517
SK LD Seal Item Number - 496453 DODGE - SK 517 LD 75
SK FS Seal Item Number - 496471 DODGE - SK 517 FS 75
SK VR Seal Item Number - 496489 DODGE - SK 517 VR 75
Labyrinth Seal Item Number - 747335 DODGE - TS 517
Triple-Tect Seal Item Number - 747391 DODGE - TT 517
End Cover Item Number - 709166 DODGE - DK 90
Spherical Roller Bearing Item Number - 422005 DODGE - 22217EK1.C3
Fixing Ring Item Number - 747125 DODGE - SR 150x12.5
Fixing Ring Quantity - 2
Adapter Item Number - 046224 DODGE - H 317
Sight Glass Item Number - 740453 DODGE - SG 517
Self-aligning Ball Bearing Item Number - 052643 DODGE - 1217K.C3
Fixing Ring Item Number - 747184 DODGE - SR 150x16.5
Fixing Ring Quantity - 2
Adapter Item Number - 719380 DODGE - H 217
Self-aligning Ball Bearing Item Number - 702893 DODGE - 2217K.C3
Fixing Ring Item Number - 747125 DODGE - SR 150x12.5
Fixing Ring Quantity - 2
Adapter Item Number - 046224 DODGE - H 317
Weight (kg) - 15.7

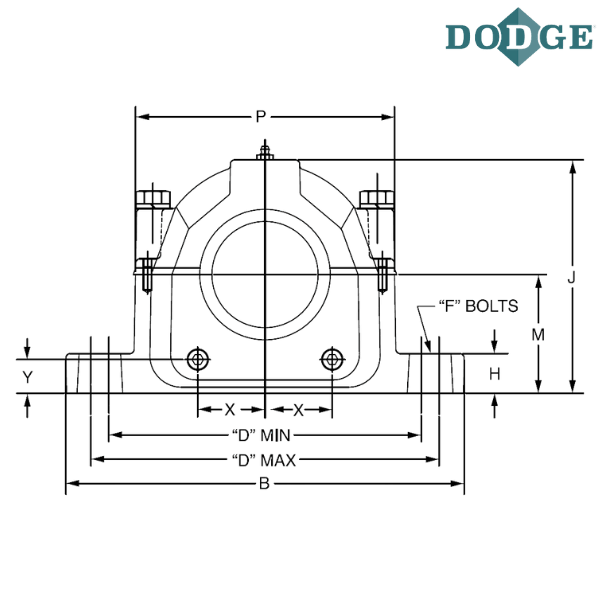

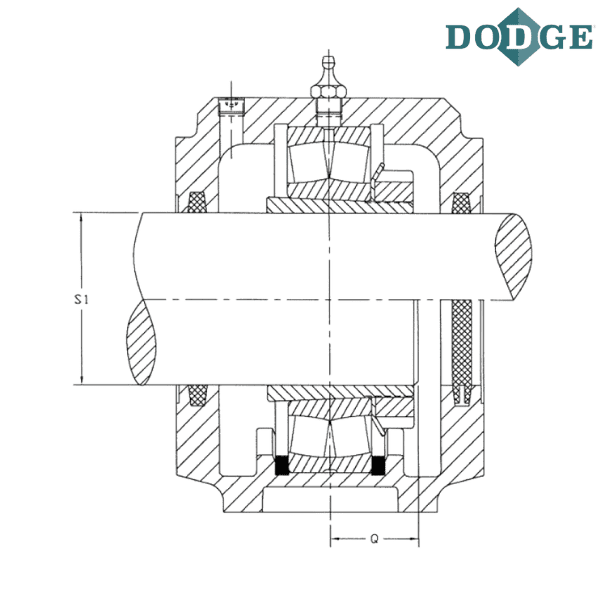

Shaft Size (S-1) mm - 75
A1 (mm) - 132
Overall Length (B) mm - 320
C (mm) - 90
Bolt to Bolt Minimum Distance (D min) mm - 251
Bolt to Bolt Maximum Distance (D max) mm - 279
F-Bolt Diameter - M20
H (mm) - 32
Overall Height (J) mm - 187
K (mm) - 63
Base to Center Height (M) mm - 95
P (mm) - 208
Q (mm) - 36
Static Oil Level (W) mm - 35.5
X (mm) - 53
Y (mm) - 28

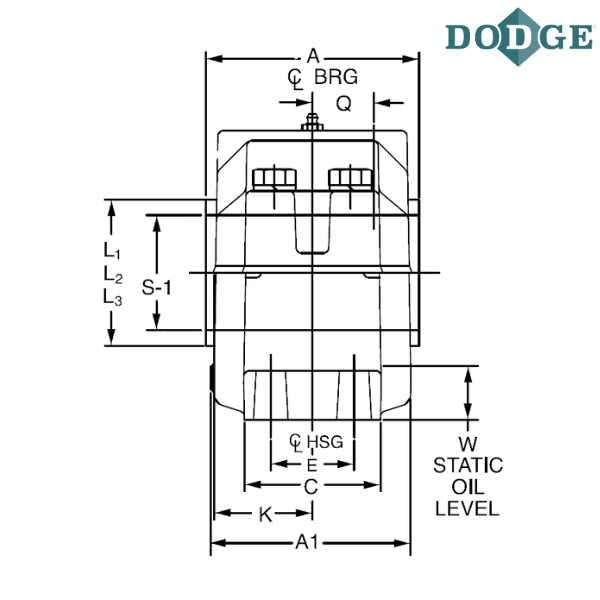

A (With LD Seal) mm - 125
A (With FS Seal) mm - 125
A (With VR Seal) mm - 139
A (With TS Seal) mm - 137
A (With TT Seal) mm - 145
A (With DK End Cover) mm - 125
L1 (VR Seal) mm - 87
L2 (TS Seal) mm - 100
L3 (TT) mm - 107

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
