747033 DODGE - SNX 218

Brand - DODGE
Item Number - 747033 DODGE - SNX 218
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 218
LD Seal Item Number - 725341 DODGE - LD 100
FS Seal Item Number - 713588 DODGE - 10X12X185
VR Seal Item Number - 738155 DODGE - VS0100
DK End Cover Item Number - 708959 DODGE - DK 100
Spherical Roller Bearing Item Number - 421268 DODGE - 22218E1.C3
Fixing Ring Item Number - 747128 DODGE - SR 160x12.5
Fixing Ring Quantity - 2
Spherical Roller Bearing Item Number - 421396 DODGE - 23218E1.C3
Fixing Ring Item Number - 747189 DODGE - SR 160x6.25
Fixing Ring Quantity - 2
Locknut Item Number - 046292 DODGE - KM 18
Lockwasher Item Number - 046311 DODGE - MB 18
Sight Glass Item Number - 740453 DODGE - SG 218
Weight (kg) - 16.7

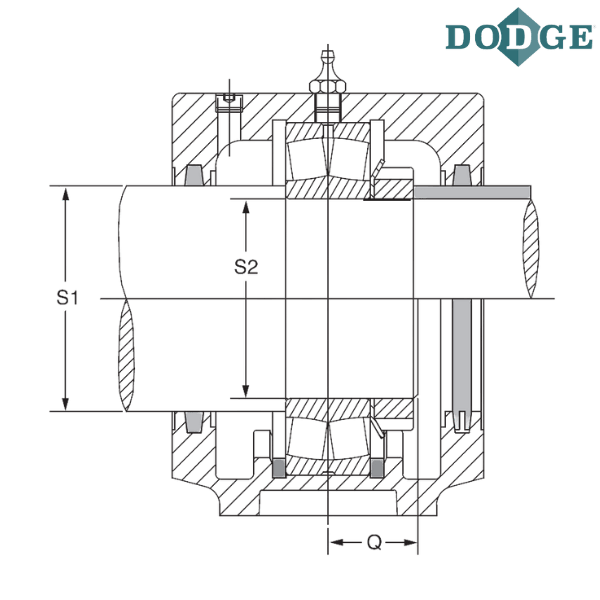

Shaft Size (S-1) mm - 100
Shaft Size (S-2) mm - 90

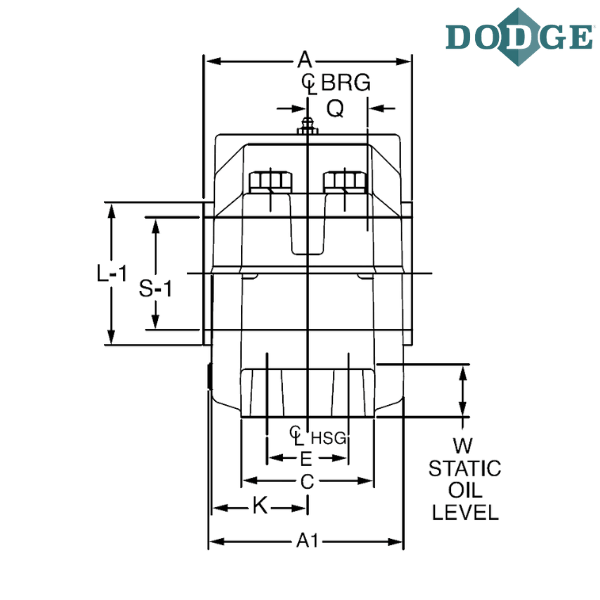

A1 (mm) - 151
Overall Length (B) mm - 346
C (mm) - 98

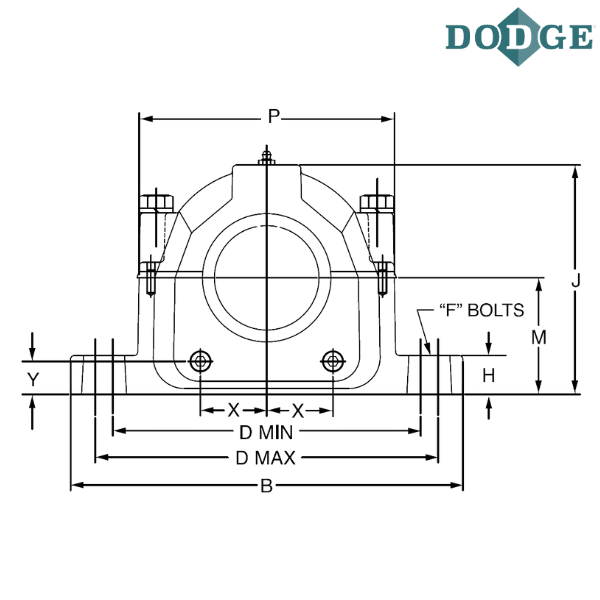

Bolt to Bolt Minimum Distance (D min) mm - 260
Bolt to Bolt Maximum Distance (D max) mm - 299
F-Bolt Diameter - M20
H (mm) - 35
Overall Height (J) mm - 195
K (mm) - 72
Base to Center Height (M) mm - 100
P (mm) - 220
Q (mm) - 20
Static Oil Level (W) mm - 47
X (mm) - 57
Y (mm) - 28
A (With LD Seal) mm - 144
A (With FS Seal) mm - 144
A (With DK End Cover) mm - 144
A (With TS Seal) mm - 155
A (With VR Seal) mm - 157
L-1 (mm) - 102

Notes :
SNX - Plummer Block to 140 mm
