747033 DODGE - SNX 315

Brand - DODGE
Item Number - 747033 DODGE - SNX 315
Category - SNX 300 (Plummer Blocks for bearings 22300)
Description - SNX 315
SK FS Seal Item Number - 496407 DODGE - SK 315 FS 85
End Cover Item Number - 708959 DODGE - DK 100
Sight Glass Item Number - 740453 DODGE - SG 315
Spherical Roller Bearing Item Number - 423130 DODGE - 22315E1.C3
Fixing Ring Item Number - 747126 DODGE - SR 160X5
Fixing Ring Quantity - 2
Locknut Item Number - 046289 DODGE - KM 15
Lockwasher Item Number - 046308 DODGE - MB 15
Weight (kg) - 16.7

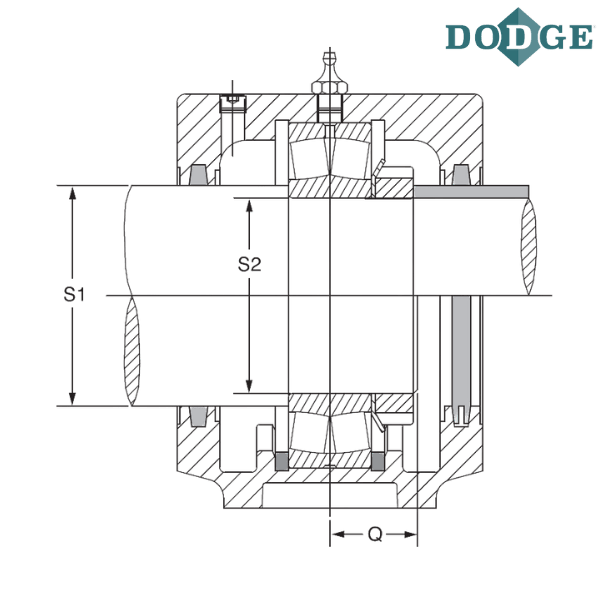

Shaft Size (S-1) mm - 85
Shaft Size (S-2) mm - 75

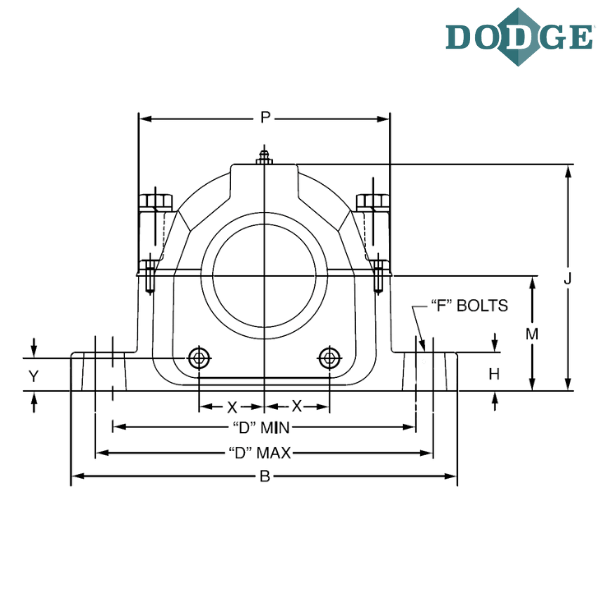

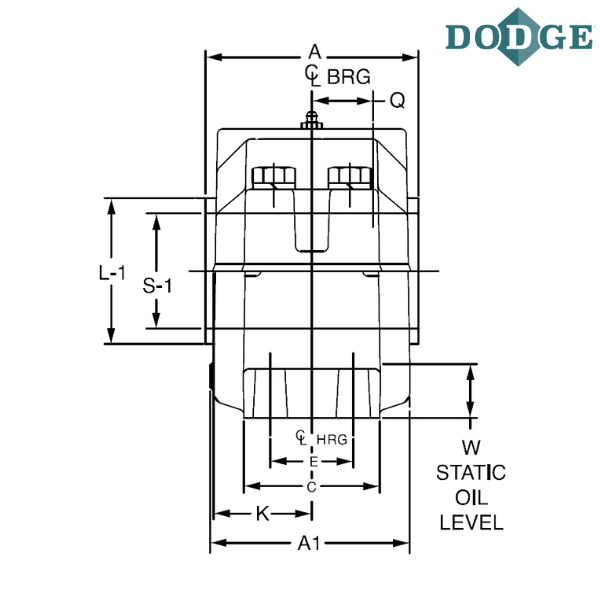

A1 (mm) - 150.8
Overall Length (B) mm - 346.1
C (mm) - 98.4
Bolt to Bolt Minimum Distance (D min) mm - 260.4
Bolt to Bolt Maximum Distance (D max) mm - 298.5
F-Bolt Diameter - M20
H (mm) - 34.9
Overall Height (J) mm - 195.3
K (mm) - 72.2
Base to Center Height (M) mm - 99.9
P (mm) - 219.9
Q (mm) - 27.5
Static Oil Level (W) mm - 38.8
X (mm) - 56.8
Y (mm) - 27.5
A (With FS Seal) mm - 144.4
A (With DK End Cover) mm - 144.4
L1 (mm) - 102.1

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
