747033 DODGE - SNX 615

Brand - DODGE
Item Number - 747033 DODGE - SNX 615
Category - SNX 600 (Plummer Blocks for bearings 22300K)
Description - SNX 615
SK LD Seal Item Number - 496418 DODGE - SK 615 LD 65
SK FS Seal Item Number - 496429 DODGE - SK 615 FS 65
SK VR Seal Item Number - 496440 DODGE - SK 615 VR 65
End Cover Item Number - 708959 DODGE - DK 100
Spherical Roller Bearing Item Number - 423106 DODGE - 22315E1K.C3
Fixing Ring Item Number - 747126 DODGE - SR 160X5
Fixing Ring Quantity - 2
Adapter Item Number - 719397 DODGE - H 2315
Sight Glass Item Number - 740453 DODGE - SG 615
Weight (kg) - 16.7

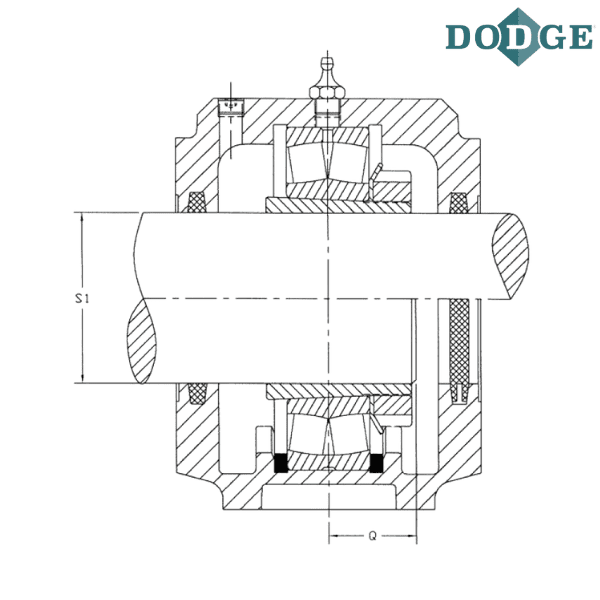

Shaft Size (S-1) mm - 65

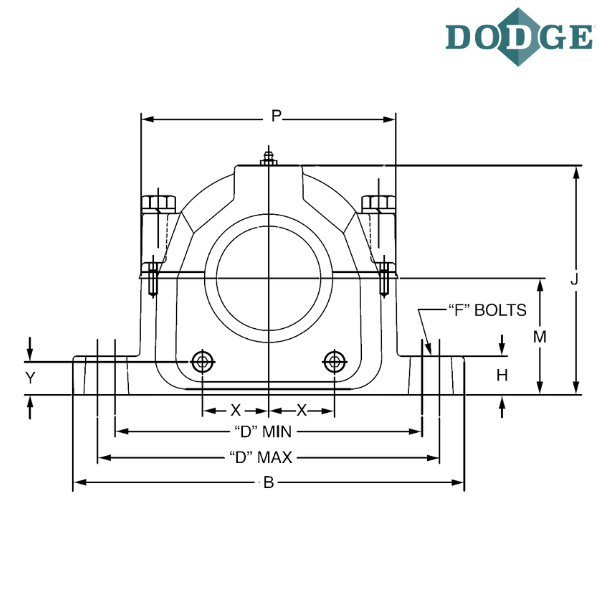

A1 (mm) - 151
Overall Length (B) mm - 346
C (mm) - 98
Bolt to Bolt Minimum Distance (D min) mm - 260
Bolt to Bolt Maximum Distance (D max) mm - 299
F-Bolt Diameter - M20
H (mm) - 35
Overall Height (J) mm - 195
K (mm) - 72
Base to Center Height (M) mm - 100
P (mm) - 220
Q (mm) - 43

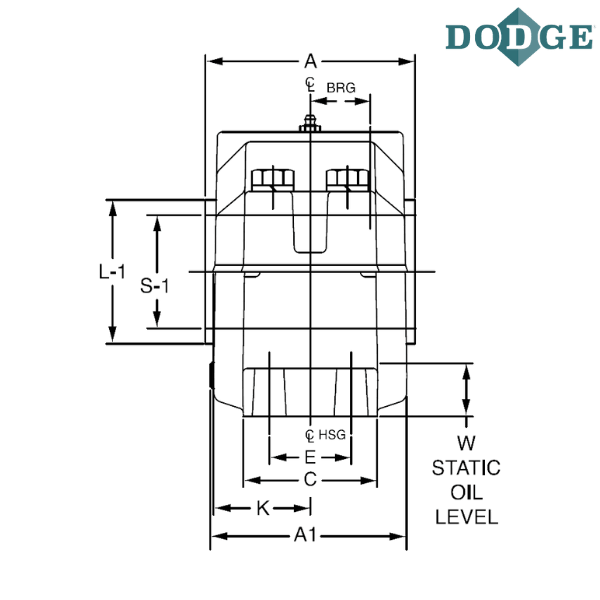

Static Oil Level (W) mm - 38.8
X (mm) - 57
Y (mm) - 28
A (With LD Seal) mm - 144
A (FS Seal) mm - 144
A (With End Cover) mm - 144
A (With VR Seal) mm - 153
L1 (VR Seal) mm - 75

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
