747034 DODGE - SNX 316

Brand - DODGE
Item Number - 747034 DODGE - SNX 316
Category - SNX 300 (Plummer Blocks for bearings 22300)
Description - SNX 316
SK FS Seal Item Number - 496408 DODGE - SK 316 FS 90
End Cover Item Number - 708966 DODGE - DK 110
Sight Glass Item Number - 740453 DODGE - SG 316
Spherical Roller Bearing Item Number - 423144 DODGE - 22316E1.C3
Fixing Ring Item Number - 747129 DODGE - SR 170X5
Fixing Ring Quantity - 2
Locknut Item Number - 046290 DODGE - KM 16
Lockwasher Item Number - 046309 DODGE - MB 16
Weight (kg) - 27

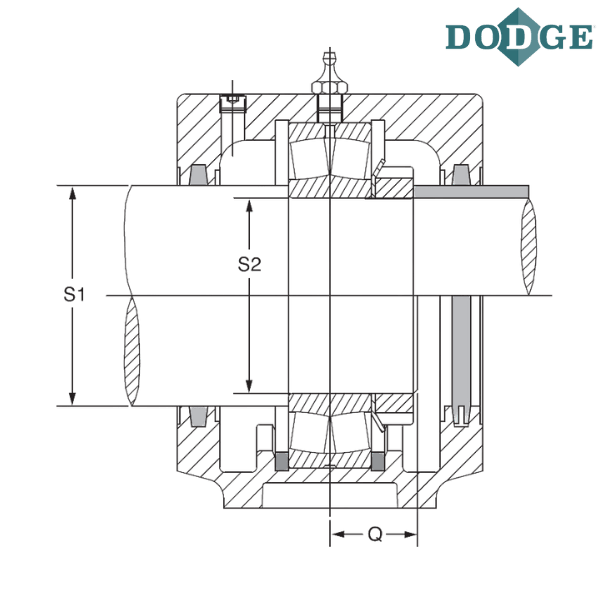

Shaft Size (S-1) mm - 90
Shaft Size (S-2) mm - 80

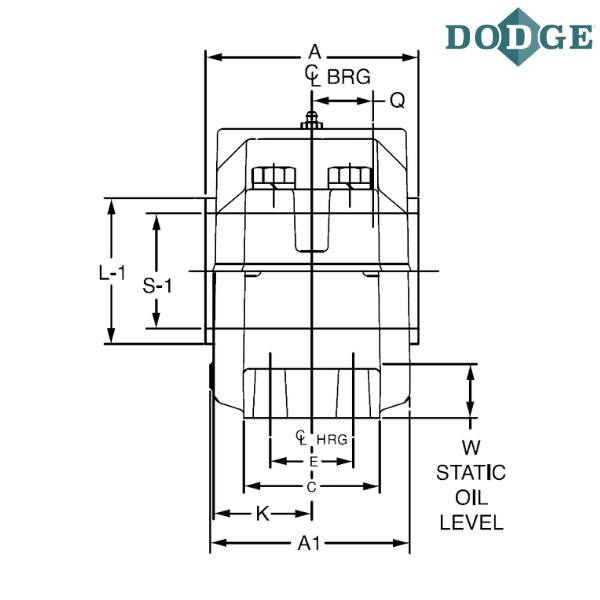

A1 (mm) - 156.4
Overall Length (B) mm - 360
C (mm) - 98.4

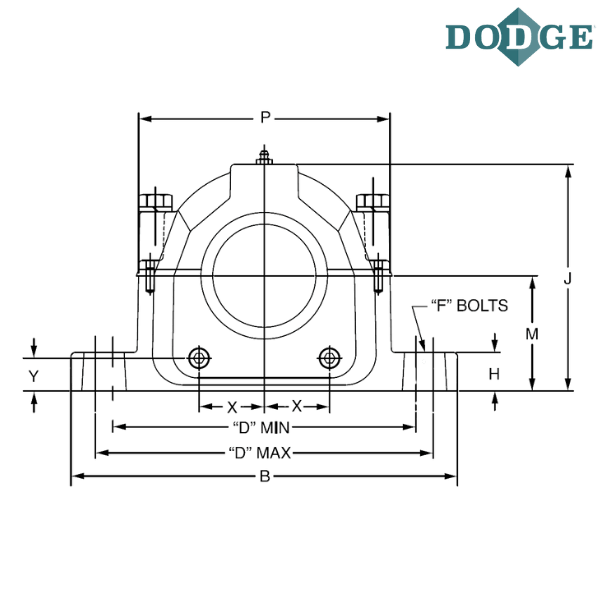

Bolt to Bolt Minimum Distance (D min) mm - 276.2
Bolt to Bolt Maximum Distance (D max) mm - 314.3
F-Bolt Diameter - M20
H (mm) - 35
Overall Height (J) mm - 213.6
K (mm) - 75
Base to Center Height (M) mm - 111.9
P (mm) - 229.4
Q (mm) - 29
Static Oil Level (W) mm - 46.9
X (mm) - 60
Y (mm) - 35
A (With FS Seal) mm - 150
A (With DK End Cover) mm - 150
L1 (mm) - 113.3

Notes :
SNX - Plummer Block to 140 mm
