747034 DODGE - SNX 519

Brand - DODGE
Item Number - 747034 DODGE - SNX 519
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 519
SK LD Seal Item Number - 496455 DODGE - SK 519 LD 85
SK FS Seal Item Number - 496473 DODGE - SK 519 FS 85
SK VR Seal Item Number - 496491 DODGE - SK 519 VR 85
Labyrinth Seal Item Number - 747337 DODGE - TS 519
Triple-Tect Seal Item Number - 747393 DODGE - TT 519
End Cover Item Number - 708966 DODGE - DK 110
Spherical Roller Bearing Item Number - 422979 DODGE - 22219EK1.C3
Fixing Ring Item Number - 747130 DODGE - SR 170x12.5
Fixing Ring Quantity - 2
Adapter Item Number - 719499 DODGE - H 319
Adapter Item Number - 046719 DODGE - H 2319
Sight Glass Item Number - 740453 DODGE - SG 519
Self-aligning Ball Bearing Item Number - 701659 DODGE - 1219K.C3
Fixing Ring Item Number - 747186 DODGE - SR 170x18
Fixing Ring Quantity - 2
Adapter Item Number - 719382 DODGE - H 219
Self-aligning Ball Bearing Item Number - 702904 DODGE - 2219K.M.C3
Fixing Ring Item Number - 747130 DODGE - SR 170x12.5
Fixing Ring Quantity - 2
Adapter Item Number - 719499 DODGE - H 319
Weight (kg) - 27

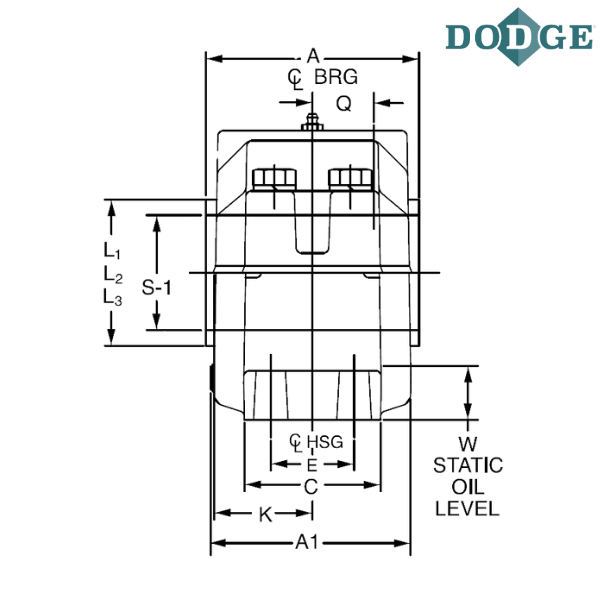

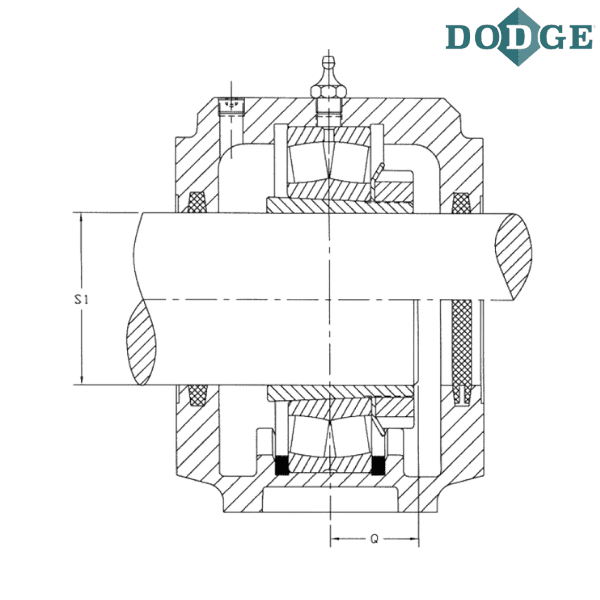

Shaft Size (S-1) mm - 85
A1 (mm) - 156
Overall Length (B) mm - 360
C (mm) - 98

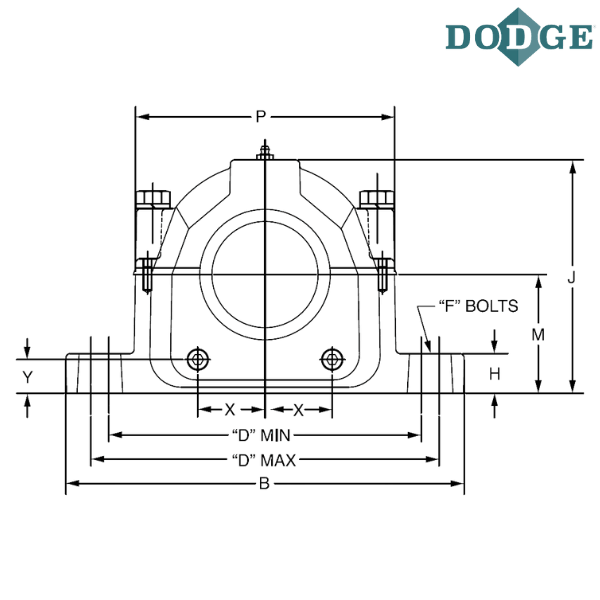

Bolt to Bolt Minimum Distance (D min) mm - 276
Bolt to Bolt Maximum Distance (D max) mm - 314
F-Bolt Diameter - M20
H (mm) - 35
Overall Height (J) mm - 214
K (mm) - 75
Base to Center Height (M) mm - 112
P (mm) - 229
Q (mm) - 41
Static Oil Level (W) mm - 39.5
X (mm) - 60
Y (mm) - 35
A (With LD Seal) mm - 150
A (With FS Seal) mm - 150
A (With VR Seal) mm - 162
A (With TS Seal) mm - 161
A (With TT Seal) mm - 169
A (With DK End Cover) mm - 150
L1 (VR Seal) mm - 97
L2 (TS Seal) mm - 110
L3 (TT) mm - 124

Notes :
SNX - Plummer Block to 140 mm
