747034 DODGE - SNX 616

Brand - DODGE
Item Number - 747034 DODGE - SNX 616
Category - SNX 600 (Plummer Blocks for bearings 22300K)
Description - SNX 616
SK LD Seal Item Number - 496419 DODGE - SK 616 LD 70
SK FS Seal Item Number - 496430 DODGE - SK 616 FS 70
SK VR Seal Item Number - 496421 DODGE - SK 616 VR 70
End Cover Item Number - 708966 DODGE - DK 110
Spherical Roller Bearing Item Number - 423373 DODGE - 22316E1K.C3
Fixing Ring Item Number - 747129 DODGE - SR 170X5
Fixing Ring Quantity - 2
Adapter Item Number - 046717 DODGE - H 2316
Sight Glass Item Number - 740453 DODGE - SG 616
Weight (kg) - 27

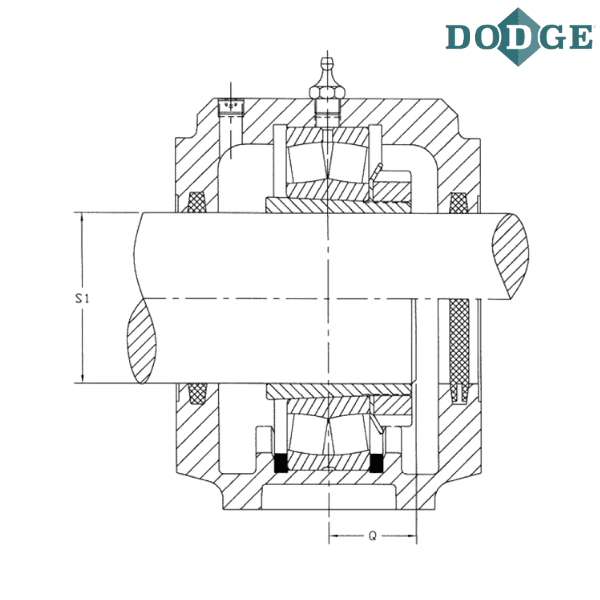

Shaft Size (S-1) mm - 70

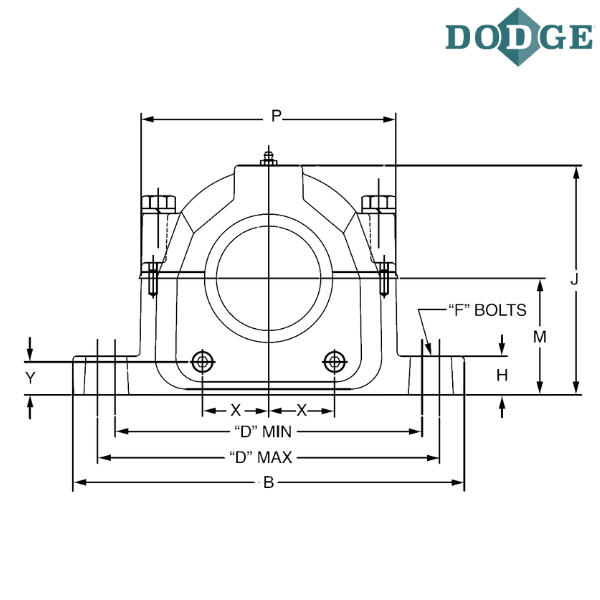

A1 (mm) - 156
Overall Length (B) mm - 360
C (mm) - 98
Bolt to Bolt Minimum Distance (D min) mm - 276
Bolt to Bolt Maximum Distance (D max) mm - 314
F-Bolt Diameter - M20
H (mm) - 35
Overall Height (J) mm - 214
K (mm) - 75
Base to Center Height (M) mm - 112
P (mm) - 229
Q (mm) - 46

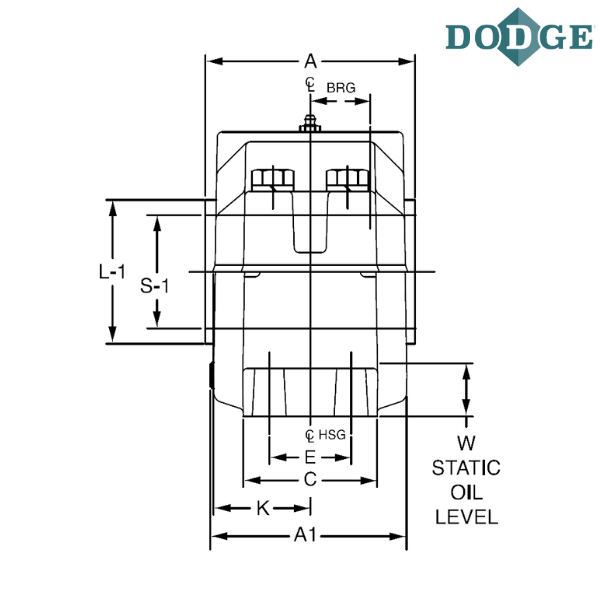

Static Oil Level (W) mm - 46.9
X (mm) - 60
Y (mm) - 35
A (With LD Seal) mm - 150
A (FS Seal) mm - 150
A (With End Cover) mm - 150
A (With VR Seal) mm - 162
L1 (VR Seal) mm - 82

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
